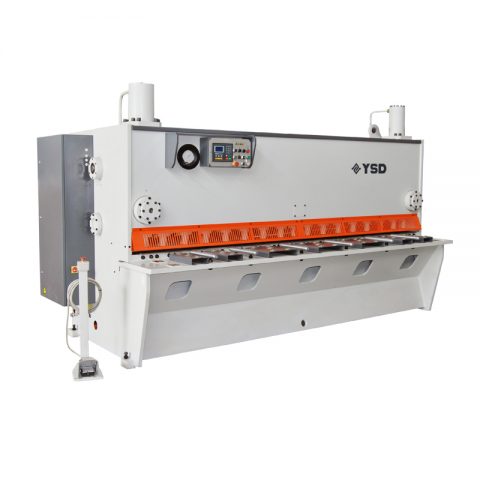

HGO(K) series hydraulic metal guillotine shears can be used to cut mild steel with thickness up to 6.35 mm and stainless steel with thickness up to 3 mm. The hydraulic guillotine machine is designed with maximum cutting length 4000 mm and maximum cutting force 165 kN. Our products are made under ISO9001 standards and feature in high quality. They are characterized by concise appearance and graceful outline. Additionally, these hydraulic guillotine machines offer easy manipulation, maintenance and regulation.
YSD is a leading manufacturer for big press brakes, tandem press brakes and big metal guillotine shears, with over 80% market shares in China. It has also been the biggest exporter for metal-forming machines among all Chinese machine manufacturers for the past decades. With sales agents in over 30 countries, YSD sells about 1800 press brakes and hydraulic guillotine machines throughout the world every year. More than 21,000 sets of press brakes and metal guillotine shears have been sold for customers in all kinds of industries all over the world.
Model | HGO | HGN | |||||||
25/6 | 31/6.35 | 40/6.35 | 25/8 | 31/8 | 40/8 | 50/8 | 25/13 | 31/13 | |
Mild steel thickness (45kg/mm2) (mm) | 6 | 6.35 | 6.35 | 8 | 8 | 8 | 8 | 13 | 13 |
Stainless steel thickness (60kg/mm2) (mm) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 8 | 8 |
Cutting lenght (mm) | 2500 | 3100 | 4000 | 2500 | 3100 | 4000 | 5000 | 2500 | 3100 |
Max. Cutting force (ton) | 16.5 | 14.5 | 16.5 | 22 | 27.5 | 27.5 | 24.5 | 58 | 58 |
Backgauge range (mm) | 750 | 750 | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 |
Rake angel adjustment (deg) | 0.5-2.5 | 0.5-3 | 0.5-2.5 | 0.5-2.5 | 0.5-2.0 | 0.5-2.0 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
Strokes per minute | 12 | 10 | 8 | 17 | 15 | 11 | 8 | 9 | 9 |
Frame throat (mm) | * | * | * | 100 | 100 | 100 | 100 | 100 | 100 |
Number of holddowns | 14 | 17 | 22 | 14 | 17 | 22 | 26 | 14 | 17 |
Volume of oil tank (L) | 110 | 110 | 200 | 290 | 350 | 400 | 605 | 383 | 449 |
Motor power (kw) | 7.5 | 7.5 | 11 | 11 | 11 | 15 | 18.5 | 15 | 15 |
Approx. weight (kg) | 4700 | 5500 | 8000 | 6000 | 6500 | 10800 | 19000 | 7500 | 8700 |
Lenght (mm) | 3445 | 4045 | 4995 | 3155 | 3755 | 4750 | 5885 | 3260 | 3860 |
Width (mm) | 1629 | 1737 | 1862 | 1850 | 1850 | 1920 | 2170 | 2150 | 2150 |
Height (mm) | 1615 | 1750 | 1900 | 2180 | 2180 | 2325 | 2520 | 2320 | 2320 |
