Plate Bending Machine

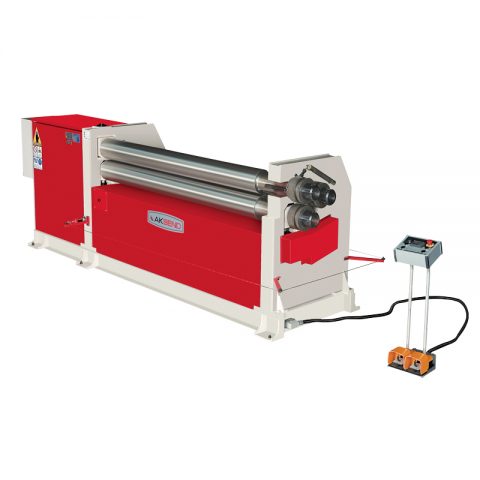

Asymetrical Plate Bending (ASM-S)

PERFECT RESULTS FOR THINNER SHEET METALS ASM-S with its user friendly outstanding features, stands out as a asymmetric plate bending machine produced in high-tech Akyapak manufacturing process and have advanced technology. ASM-S offers a robust and powerfull machine with its fully welded steel frame. The top and lower rolls are driven by electric motor + gearbox + gear system.

4 Roller Hydraulic Plate Bending (AHS)

Since the swing guides are designed according to the lever arm principle, the machine provides more power to bend the material, pre-bending becomes perfect and flat ends decrease to minimum level. Drop end opens and then top roll tilts up sequentially to remove the finished part with ease. Drop end opens and then top roll tilts up sequentially to remove the finished part with ease.

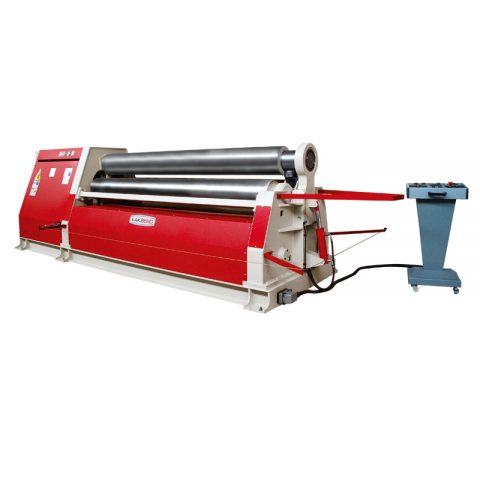

3 Roller Hydraulic Plate Bending (AHK)

Akyapak manufactures 3 rolls hydraulic plate bending machines with capacity in thickness from 2 mm to 200 mm and in width from 500 mm to 12000 mm. Frames of our machines are made of welded steel (St-52). Roll shafts and bearings are of high quality and robust in terms of bending moment. All 3 rolls are independently driven by hydraulic motors and gearboxes on 3 rolls plate bending machines whose top roll diameter is 230 mm or larger. As for the machines whose top roll diameter is smaller than 230 mm, top roll is driven by gearbox and lateral rolls are driven by hydraulic motors independently.
