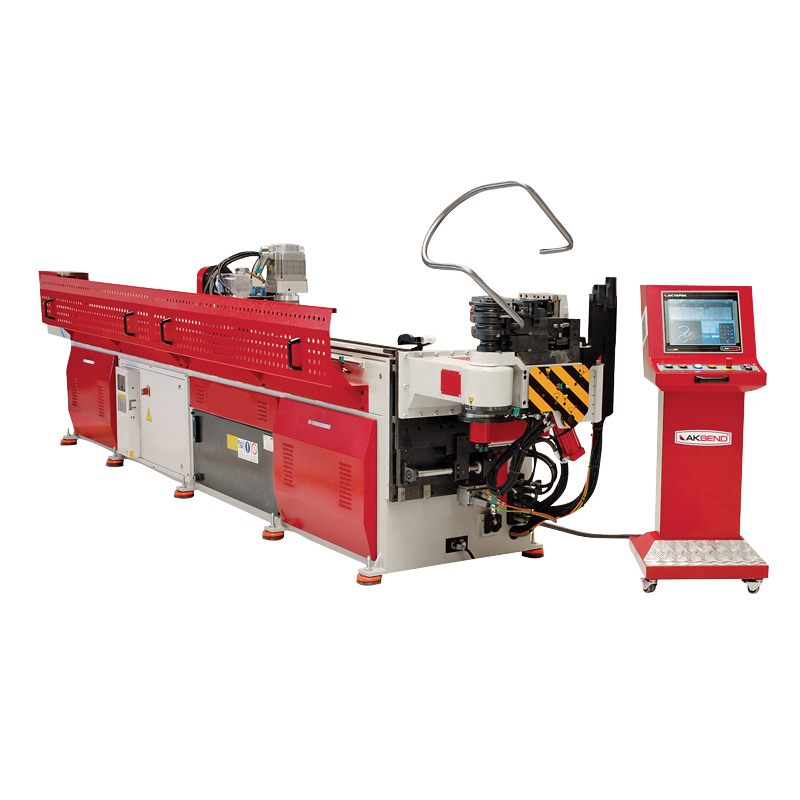

ABM series of tube bending machines produced by AKYAPAK with “High Technology” by the best quality range components with various lengths, provides excellent results for bending operations of tubes up to 38, 50, 76, 80 mm tube diameters. AKBEND ABM machines, which can bend mild steel, stainless steel, aluminum and similar bendable materials in simple and complex shapes, are prior choices for automotive, furniture, cooling-heating, insulation and similar manufacturers that target high quality for their productions. ABM CNC Tube Bending Machines highlight convenience and efficiency for users, carrying out bending process consecutively and automatically. Costs of serial productions or single bending operations decrease significantly. Programming is also really user-friendly and easy. The only thing needs to be done by users is loading tube through the machine and selecting the program.
TECHNICAL FEATURES
- Bending, moving ahead, postponing and turning axis with servo control
- Controlling ability of servo axis speeds on control panel
- Hydraulic assistant axis
- Footpedal control
- Step by step and fully automatic working capability
- Capability to work with three dies
- Dies can be supplied for any demanded size
- Operational ability with/ without mandrel
- Capability of bending steel, stainless steel, aluminum and similar bendable tubes in simple or complex shapes.
- Possibility of bending longer tubes than the machine length (for certain diameters)
- Unlimited angle obtaining possibility with rolling system
- Spiral bending (only on certain diameters)
- Hydraulic oil cooler
- Auto-lubrication for mandrel
- Practical interface program prepared in Akyapak
- Program making possibility in YBC mode
- Tube length can be calculated in the part program.
- Motion controller system
- 3D preview of written program
- Motors in variable voltage and frequency
- 15” color touchscreen PC.
- Starting up serial production after short period training
- Suitable for CE,ISO9001-2008, TSEK and TURQUM certificates
| Technical Information | Max. Bending Diameter | Max. Thickness | Bending Degree Max. | Bending Radius Max. | Operation Speed | Working Tolerance | Hydraulic System | Oil Tanking Capacity | |||||
| Feeding Speed | Rotation Speed | Bending Speed | Feeding | Rotation | Bending | Hydraulic Motor Power | Max. Hydraulic Pressure | ||||||
| mm | mm | Degree | mm | mm/sec | Degree/sec | Degree/sec | mm | Degree | Degree | kw | bar | It | |
| ABM76 CNC3 | Ø76 | 3 | 180 | 260 | Max. 1000 | 200 | 30 | 0.1 | ±0.1 | ±0.5 | 7.5 | 180 | 120 |
| ABM76 CNC1 | Ø76 | 3 | 180 | 260 | Max. 1000 | 150 | 30 | 0.1 | ±0.1 | ±0.5 | 7.5 | 180 | 120 |
| ABM76 NC | Ø76 | 3 | 180 | 260 | – | 100 | 30 | – | ±0.1 | ±0.5 | 7.5 | 180 | 120 |
| ABM50 CNC | Ø50 | 3 | 180 | 170 | Max. 1000 | 200 | Max. 90 | ±0.1 | ±0.1 | ±0.5 | 7.5 | 140 | 120 |
| ABM38 CNC | Ø38 | 2 | 180 | 150 | Max. 1000 | 200 | Max. 90 | ±0.1 | ±0.1 | ±0.5 | 7.5 | 140 | 120 |
