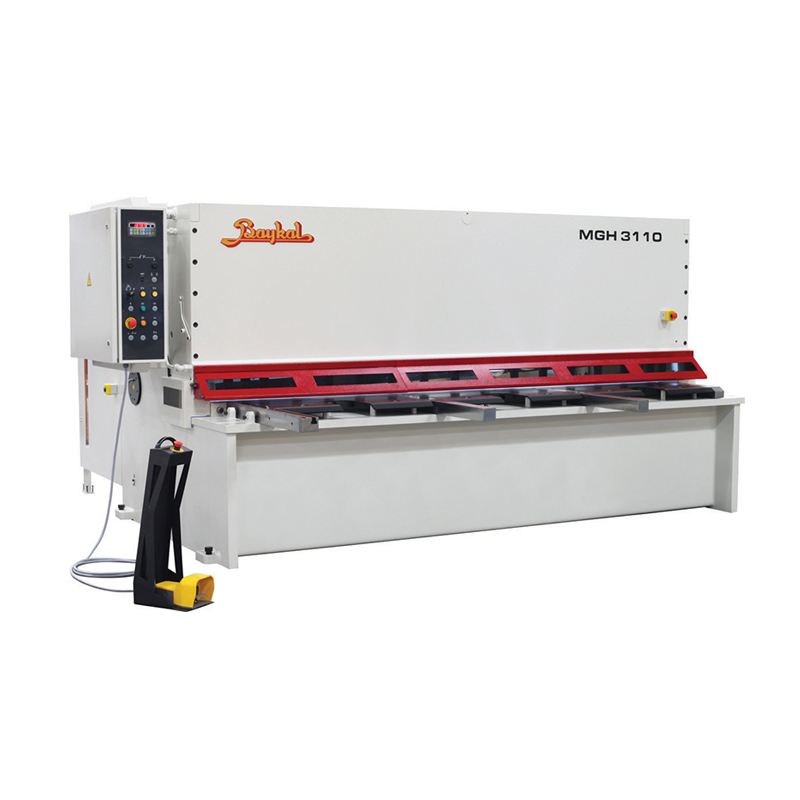

General Features

• Welded all-steel frame providing maximum rigidity and cutting accuracy.
• Swinging top beam working on high precision and self-aligning roller bearings.
• Rapid blade gap adjustment mechanism.
• Swing-up backgauge system for shearing longer pieces than maximum backgauge range.
• Backgauge retract function.
• Compact, low-maintenance hydraulic unit located above oil tank.
• Easily servicable hydraulic cylinders in series connection.
• Hydraulic holddown system.
• Hydraulic overload protection.
• Fine adjustment of blades from lower beam.
• Adjustable stroke length to increase number of strokes on shorter cuts.
• 250 mm side frame.

Standard Equipment

• Shear blades made from tough and wear-resistant alloyed material Top blade : two cutting edges Bottom blade : four cutting edges.
• 1000 mm power backgauge with ballscrew spindles to 0.1 mm precision.
• Backgauge digital readout control.
• Digital stroke counter.
• Foot pedal control for single and repetitive cutting cycles.
• 1000 mm squaring arm with scale, T-slot and flip-stop.
• Front support arms in 1000 mm length.
• Work table with filler plates, ball transfers and hand slots.
• Emergency stop buttons.
• Shadow line facility with fluorescent lighting.
• See-through” finger guard and side throat guards.

Optional Equipment

• Power blade gap adjustment with digital readout control.
• Pneumatic rear support systems for thin Sheets.
• Worktime counter.
• Squaring arm and front arm length other than standard.
• T-slotted front support arms with scale and flip-stop.
• Throat gap deeper than standard.
• Angle gauge.
• 1000 mm lift-up front finger guard with electrically interlocked safety switch.
• Holddown pads.
• Rear safety guarding.
• Conformity to European Community CE norms.
