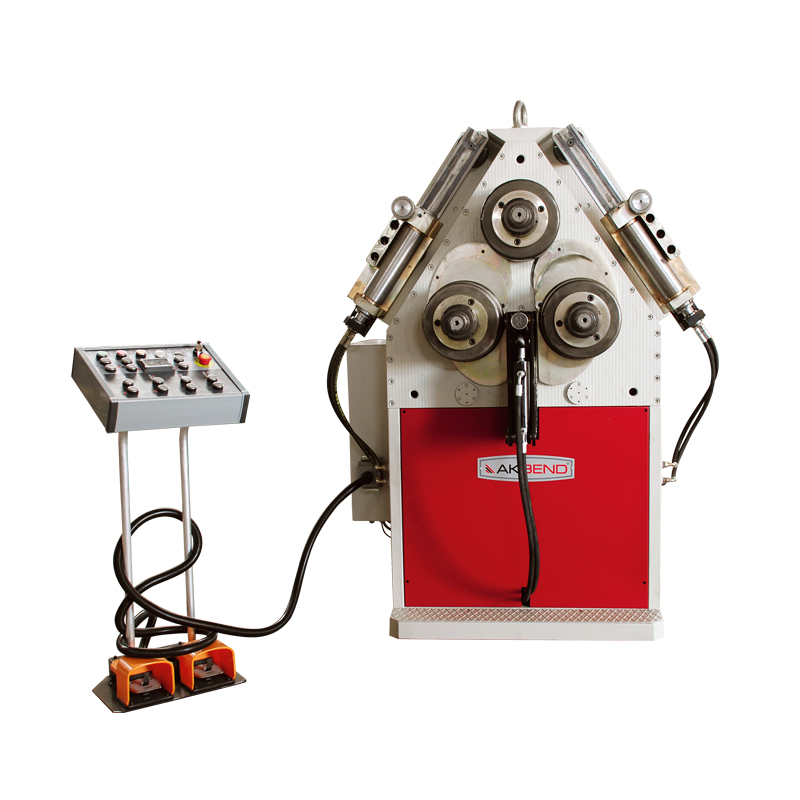

AKYAPAK offers extensive alternatives on heavy duty profile bending machines as well. Our machines are strong and reliable with their St-52 weld construction body. Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained. The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust. Akyapak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, our 3 Rolls Driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other. Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make pre bending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals.
STANDART FEATURES
OPTIONAL FEATURES
Model | APK 61 | APK 81 | Rolls | |||
Technical Information | Size and Diameter | Size and Diameter | ||||
mm. min Ø | mm. min Ø | |||||
1 | 30x30x3 | 250 | 35x35x3 | 500 | AD | |
70x70x8 | 1200 | |||||
50x50x5 | 500 | 80x80x8 | 1600 | |||
2 | 30x30x3 | 400 | 40x40x4 | 600 | AD | |
40x40x5 | 600 | 70x70x9 | 1000 | |||
50x50x6 | 1000 | 80x80x8 | 2000 | |||
3 | 30x30x3 | 300 | 70x30x4 | 400 | A | |
600 | 70x70x8 | 1000 | ||||
80x40x7.5 | 1000 | 80x80x8 | 1400 | |||
4 | 30x30x3 | 300 | 30x30x4 | 400 | A | |
50x50x6 | 600 | 70x70x8 | 1000 | |||
70x35x6 | 1200 | 80x80x8 | 1400 | |||
5 | 40×10 | 220 | 40×10 | 300 | A | |
60×20 | 500 | 80×25 | 700 | |||
80×25 | 2100 | 100×20 | 2100 | |||
6 | 50×5 | 200 | 50×10 | 260 | A | |
80×16 | 400 | 80×20 | 400 | |||
80×20 | 1200 | 120×30 | 600 | |||
7 | 15 | 300 | 30 | 300 | AD | |
30 | 600 | 40 | 500 | |||
35 | 1400 | 45 | 1000 | |||
8 | 20 | 300 | 35 | 300 | B | |
35 | 600 | 50 | 500 | |||
40 | 800 | 60 | 1000 | |||
9 | 25×1.5 | 200 | 40×2 | 400 | B | |
60×2 | 800 | 100×2 | 2400 | |||
70×2 | 1600 | 100×3 | 3000 | |||
10 | 26.5×2.3 | 200 | 48.3×3.2 | 400 | B | |
48.3×2.9 | 600 | 88.9×3.2 | 1000 | |||
60.3×3.2 | 1000 | 88.9×4 | 1600 | |||
11 | 30x15x1.5 | 300 | 50x25x2 | 600 | AC | |
60x30x2.5 | 2000 | 80x40x5 | 2000 | |||
80x30x3 | 6000 | 100x40x3.2 | 3000 | |||
12 | 20x20x2 | 240 | 40x40x2.7 | 500 | AC | |
50x50x2.5 | 1600 | 70x70x3.2 | 1600 | |||
60x60x3 | 4000 | 70x70x4 | 3000 | |||
13 | UNP 30 | 300 | UNP 60 | 400 | AC | |
UNP 60 | 400 | UNP 120 | 800 | |||
UNP 80 | 800 | UNP 140 | 1200 | |||
14 | UNP 30 | 300 | UNP 60 | 400 | AC | |
UNP 50 | 500 | UNP 120 | 800 | |||
UNP 80 | 1000 | UNP 140 | 1200 | |||
15 | INP 120 | 500 | AC | |||
Power KW | 4 + 0.75 | 5.5 +1.5 | ||||
Rolls 0 mm. | 177 | 254 | ||||
Shaft 0 mm. | 60/60 | 80/80 | ||||
Bending Speed | 6.4 m / min. | 4.2 m / min. | ||||
Weight kg. | 1080 | 1600 | ||||
WxLxH mm. | 960x1260x1390 | 1040x1375x1540 |
Model | APK 101 | APK 121 | Rolls | |||
Technical Information | Size and Diameter | Size and Diameter | ||||
mm. min Ø | mm. min Ø | |||||
1 | 50x50x6 | 700 | 50x50x5 | 650 | AE | |
90x90x8 | 1000 | 100x100x10 | 1100 | |||
100x100x10 | 1400 | 120x120x15 | 1300 | F | ||
2 | 50x50x6 | 800 | 50x50x5 | 650 | AE | |
80x80x8 | 1200 | 80x80x8 | 900 | |||
100x100x10 | 1600 | 120x120x15 | 1300 | |||
3 | 100 | 1200 | 120 | 1200 | A | |
4 | 100 | 1000 | 100 | 1200 | A | |
5 | 120 | 1200 | 130 | 1300 | A | |
6 | 40×10 | 400 | 40×10 | 500 | A | |
100×20 | 600 | 125×25 | 850 | |||
120×25 | 1600 | 140×30 | 3000 | F | ||
7 | 60×10 | 400 | 200×50 | 1000 | A | |
100×40 | 600 | |||||
200×35 | 1000 | F | ||||
8 | 30 | 400 | 75×75 | 800 | A | |
50 | 500 | |||||
60 | 1000 | F | ||||
9 | 40 | 400 | Ø85 | 900 | B | |
60 | 600 | |||||
70 | 800 | |||||
10 | 50×2 | 600 | Ø50×2 | 600 | B | |
120×2 | 2000 | |||||
140×3 | 3000 | Ø160×4 | 3000 | |||
11 | 60.3×3.2 | 400 | 101.6×12 | 1200 | B | |
114.3×3.6 | 1000 | |||||
114.3×4.5 | 16000 | 139.7×5 | 1600 | |||
12 | 40x20x2 | 500 | 140x50x5 | B | ||
100x50x5 | 3000 | |||||
140x40x3 | 4000 | |||||
13 | 50x50x2.5 | 500 | 90x90x8 | B | ||
90x90x4 | 2500 | |||||
100x100x5 | 3000 | |||||
14 | UNP 180 | 800 | UNP 240 | 1000 | AD | |
UNP 200 | 1200 | F | ||||
15 | UNP 180 | 800 | UNP 240 | 1200 | AD | |
UNP 200 | 1200 | F | ||||
16 | INP 180 | 600 | INP 240 | 1200 | AD | |
INP 200 | 800 | F | ||||
17 | HEA 120 | 1000 | HEA 140 | 1200 | AD | |
HEB 100 | 1200 | HEB 120 | 1300 | F | ||
18 | – | UNP 100 | 8000 | CB | ||
19 | INP 120 | – | INP 120 | 2500 | CB | |
20 | – | HEA 120 | 2600 | CB | ||
HEB 100 | 1500 | |||||
Section Modulus cm3 | 45 – 80 | 70 – 120 | ||||
Power KW | 11 | 15 | ||||
Rolls 0 mm. | 315 | 390 | ||||
Shaft 0 mm. | 100 | 120 | ||||
Bending Speed | 5.4m / min. | 4m / min. | ||||
Weight kg. | 2240 | 4720 | ||||
WxLxH mm. | 1220 x1435 x 1680 | 1450 x 1985 x 2040 |
Model | APK180 | APK 240 | APK 280 | APK 300 | APK 360 | APK 550 | Rolls | |||||||
Technical Information | Size and Diameter | Size and Diameter | Size and Diameter | Size and Diameter | Size and Diameter | Size and Diameter | ||||||||
mm. min Ø | mm. min Ø | mm. min Ø | mm. min Ø | mm. min Ø | mm. min Ø | |||||||||
1 | 150×15 | 1000 | 160×20 | 1600 | 200×20 | 3000 | 200×26 | 2000 | 200×26 | 1600 | 200×26 | 1300 | AD | |
2 | 130×15 | 1200 | 150×20 | 1600 | 180×16 | 3000 | 200×20 | 2000 | 200×26 | 1800 | 200×26 | 1500 | AD | |
3 | 150×15 | 1200 | 160×20 | 1400 | 200×20 | 1800 | 200×26 | 1800 | 200×28 | 1500 | 200×28 | 1300 | AD | |
4 | 130×15 | 1700 | 150×20 | 2000 | 180×18 | 2500 | 200×20 | 2800 | 200×30 | 2300 | 200×30 | 2000 | AD | |
5 | 150×15 | 1300 | 160×20 | 1500 | 200×20 | 2000 | 200×28 | 1800 | 200×20 | 1800 | 200×20 | 1800 | AD | |
6 | 150×35 | 1000 | 175×40 | 1300 | 200×50 | 2000 | 250×60 | 2000 | 400×60 | 3000 | 450×60 | 3000 | A | |
300×90 | 1300 | |||||||||||||
7 | 250×40 | 1000 | 350×50 | 900 | 400×60 | 2000 | 450×70 | 1000 | 650×100 | 2000 | 650×120 | 1700 | A | |
8 | 90×90 | 1400 | 110×110 | 1500 | 130×130 | 2000 | 150×150 | 2500 | 240×240 | 2500 | 280×280 | 2500 | A | |
9 | Ø100 | 1000 | Ø130 | 1600 | Ø150 | 1500 | Ø170 | 1700 | Ø260 | 2000 | Ø300 | 2500 | B | |
10 | Ø168.3×7.1 | 2500 | Ø219.1×8.18 | 2500 | Ø273×9.27 | 4200 | Ø323.9×10.31 | 4200 | Ø508×15.1 | 15500 | Ø558,8×15.88 | 15500 | B | |
11 | 120×8 | 150×10 | 180×12 | 220×12 | 400×16 | 450×20 | B | |||||||
12 | UNP300 | 1100 | UNP360 | 1200 | UNP450 | 2000 | UNP500 | 2000 | UNP1000 | 4000 | UNP1000 | 3500 | B | |
13 | UNP300 | 1100 | UNP360 | 1400 | UNP450 | 2000 | UNP500 | 2000 | UNP1000 | 4000 | UNP1000 | 3500 | B | |
14 | INP300 | 1200 | INP360 | 1500 | IN P450 | 2000 | INP500 | 2000 | INP1000 | 5000 | INP1000 | 5000 | B | |
15 | HEA 180 | 1100 | HEA 240 | 1500 | HEA 280 | 2000 | HEA 320 | 2500 | HEA 1000 | 6000 | HEA 1000 | 5000 | B | |
HEB 160 | 1100 | HEB 200 | 1500 | HEB 240 | 2000 | HEB 280 | 2000 | HEB 1000 | 8000 | HEB 1000 | 7000 | B | ||
16 | UNP160 | 10000 | UNP200 | 11000 | UNP240 | 12000 | UNP260 | 10000 | UNP400 | 40000 | UNP400 | 35000 | BC | |
17 | IPE160 | 3500 | IPE200 | 5000 | IPE240 | 10000 | IPE300 | 13000 | IPE550 | 20000 | IPE550 | 18000 | BC | |
18 | HEA 182 | 3500 | HEA 180 | 4500 | HEA 200 | 9000 | HEA 220 | 9600 | HEA 550 | 40000 | HEA 550 | 40000 | BC | |
HEB 120 | 2800 | HEB 160 | 3200 | HEB 180 | 3600 | HEB 200 | 5200 | HEB 500 | 30000 | HEB 500 | 25000 | |||
Max. Section Modulus cm3 | 110 | 320 | 600 | 700 | 4700 | 5500 | ||||||||
Power KW | 15 | 30 | 37 | 64 | 70 | 99 | ||||||||
Rolls 0 mm. | 460 | 550 | 660 | 740 | 800 | 800 | ||||||||
Shaft 0 mm. | 180/160 | 240/220 | 280/260 | 300/280 | 360/360 | 360/360 | ||||||||
Bending Speed | 0-7 m/min. | 0-7 m/min. | 0-7 m/min. | 7 m/min. | 7 m/min. | 7 m/min. | ||||||||
Weight kg. | 9250 | 16900 | 18500 | 26400 | 48000 | 61500 | ||||||||
W x L x H mm. | 2000x2400x1695 | 2240x3360x2055 | 2850x3800x2220 | 3350x4350x2250 | 4820x6580x4090 | 4820x6580x4310 |
