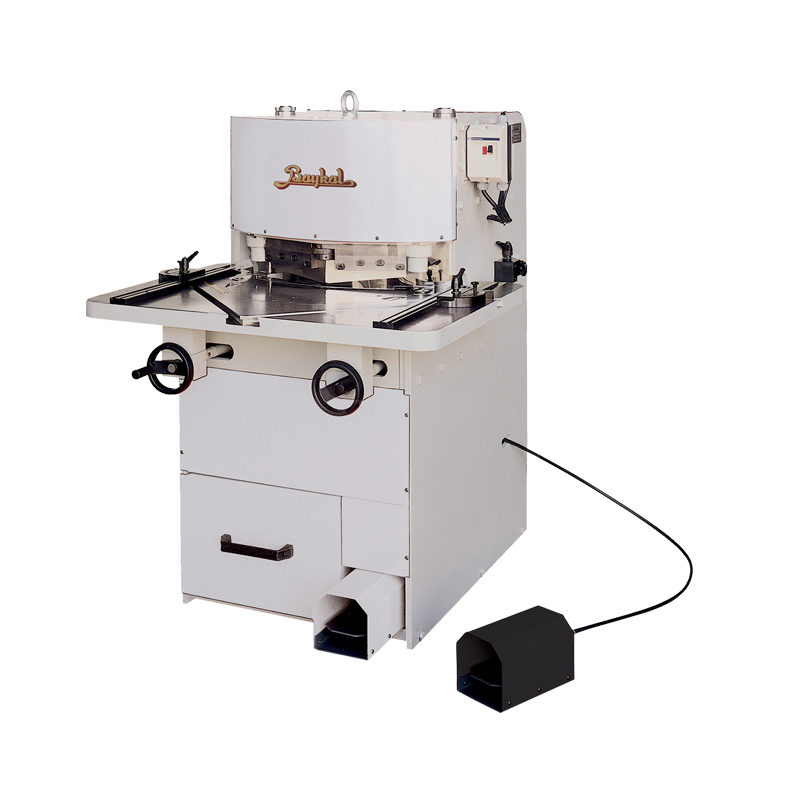

Baykal hydraulic corner cutting machines with angle setting have a strong structure with its steel table and eye tooth material provided with static and dynamic rigidity. By preferring Hydraulic Corner Cutting HKA, which is designed and manufactured as need oriented, you will make an advantageous choice for your company.
Benefits at a glance
- Rigidly constructed lower frame, work table, and cutting beam.
- Easy setting of notching angle by two hand wheels.
- Automatic blade gap adjustment for all sheet thicknesses.
- Squaring guides, scales, and angle gauge.
- Self-lubricating, precision guides to assure burr-free cutting.
- Extended work table with t-slots.
- Safe, durable, and easy operation with footswitches and a thermic-magnetic on/off switchbox which conforms to CEI and EMPl norms.
- Scrap-collection drawer.
- Maintenance-free hydraulics.
| Model | HKA 200 x 6 Variable Angle Notcher |
|
| Cutting lenght | mm | 200 |
| Cutting capacity | mm (42 kg/mm2) | 6 |
| Cutting capacity | mm (70 kg/mm2) | 3 |
| Cutting angle | degrees | 5 |
| Notching angle | degrees | 30° – 140° |
| Stroke number | cuts/min | 50 |
| Motor power | kW | 4 |
| Table dimension | mm | 920 x 730 |
| Lenght | mm | 920 |
| Width | mm | 1115 |
| Height | mm | 1300 |
| Weight | kg | 1200 |
