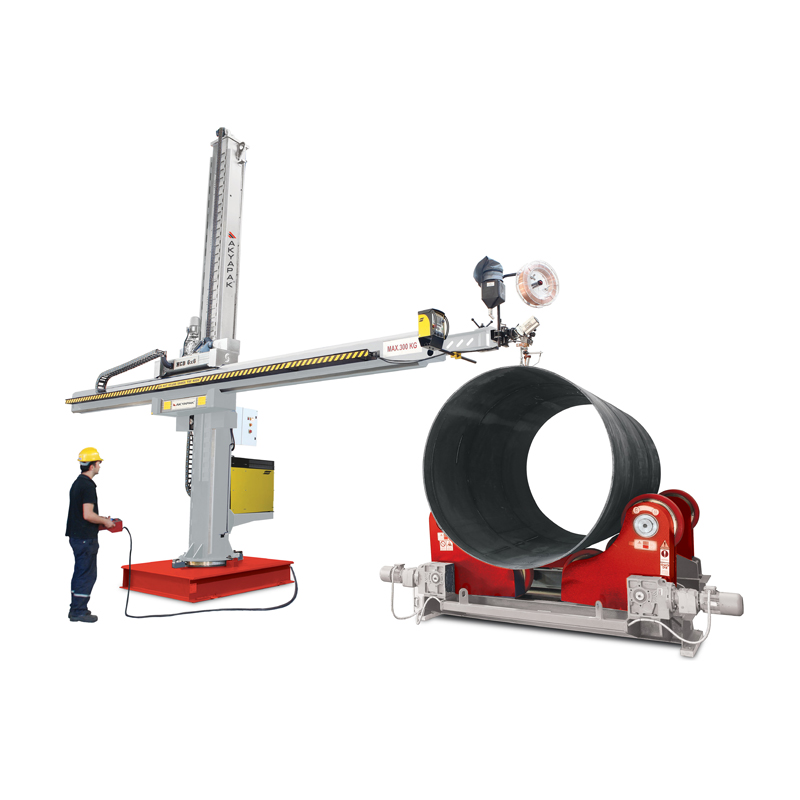

While Column-Boom systems can perform welding independently for any part, it may also perform circular or lengthwise welding using rotator or positioner. Welding types that can be performed by the system are SUBMERGED, MIG, MAG, TIG. Also, Column Boom systems can be fixed or with automatic travel on rail. Column-Boom systems enables improvement of quality, reduction of manufacturing time and operator fatigue, precision and continuous welding quantity that can be realized by an operator. Akyapak Makine includes 3x3 to 9x9 Column-Boom systems in its standard lists. However, custom production can be realized up to 10 x 10 meters.

Categories: ,

STANDARD FEATURES

  • 359° Rotatable column (manual)
  • Mobile cabled controller
  • Lighting
  • V type slide system for spaceless working
  • Adjustable linear Boom speed
  • Boom speed digital indicator
  • Setting for Boom speed (fast/slow)
  • Mechanical locking system for Boom fall
  • Counter weight system for Boom (Elevator)
  • Limit switch on all movements
  • Welding power unit’s table (above the column)
  • Motors with fan coolers and break
  • Cable channels on Column – Boom
  • Fixed on the floor system



OPTIONAL FEATURE

  • Central control panel
  • Laser track following system
  • Camera tracking system
  • Synchronous working system with Rotators (with central control panel)
  • Walk path (rail system)
  • Operator’s seat (with ladder option)
  • Dust drying system (for SAW)
  • 359 ° Rotatable column (with motor)
  • Torch holder
  • Mobile console
  • Automation system
  • Isolation rated for facility’s condition
  • Manual controlled torch orientating system
  • Mechanical track following system
  • Controller stick (Joystick) for torch orientation system
  • Oscillator (for Mig only)
  • Heavy welding wire hanging group (at back of boom)
  • Ladder
  • Two head welding system
  • Rail system
Technical Information Max Load_F (kg.) Min Height Under Boom (Hmin) Max Height Under Boom (Hmax) Overal Height (H) Boom Reach (Bmin) Boom Reach (Bmax) Boom TraversSpeed (mm/min.) Coloumn Rotation Angle (°)
MCB – 01 (5×5) 200 780 5080 6306 405 5000 100 – 2000 360
MCB – 02 (4×4) 250 780 4080 5306 405 4000 100 – 2000 360
MCB – 03 (3×3) 370 780 3080 4306 405 3000 100 – 2000 360
