  • The hydraulically operated system of high precision is equipped with machine, the speed and stroke are variable and the pressing speed is up 600 HPM
  • The high precision large traverse ballscrews and liner guide ways with reliability are equipped for driving
  • The reliable world famous CNC system with digital AC servo motor make the machine very reliable
  • The world famous main pneumatic parts are
    adopted to ensure the reliable mechanism
  • The fully bushed high precision turret improves the accuracy and longevity of the turret to a large extent. The customer can make a selection between 24 and 32 stations.
  • The advances working and heat treatment technology is adopted to the tools for the longevity
  • Sectionalised worm and gear contruction can make auto index reach extremely high precision. Max. diameter is 88.9mm
  • Flexible configuration with long or short tools can be selected according to the different requirement of customers
  • The 0-type frame, witch is suitable in 300, 400, 500, and 600,owns high rigidity

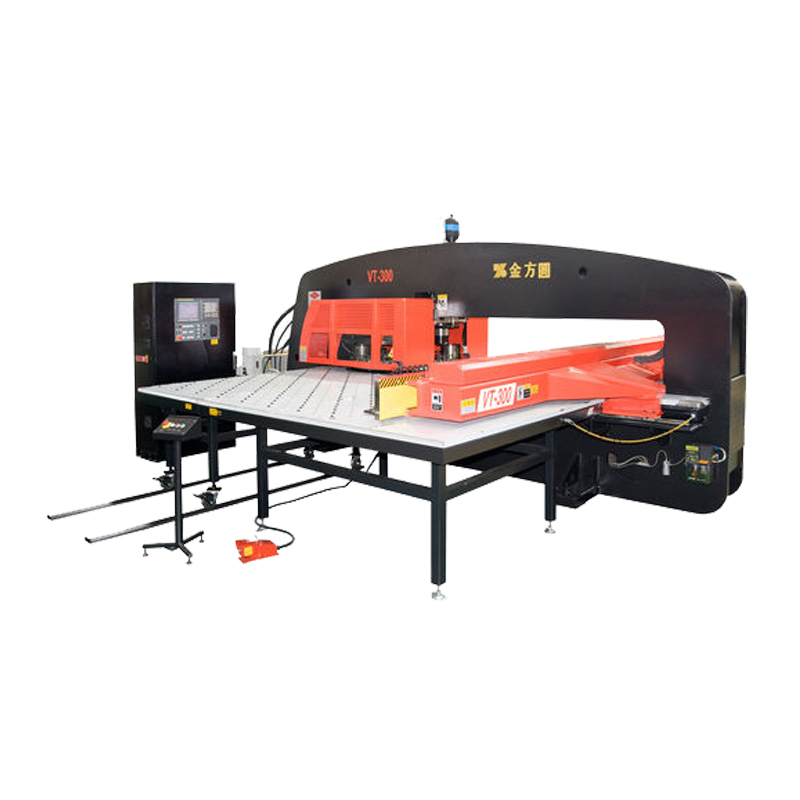

Model Unit VT-300
Punch Force ton 30
Max. sheet working size mm 1250X2500 1250X4000 1250X5000 1500X4000
Max. sheet working weight kg 150 240 300 300
Max. sheet thickness mm 6.3 6.35 6.35 6.35
Max. Punch diameter mm Ø88.9 Ø88.9 Ø88.9 Ø88.9
Number of tool stations 24/32 24/32 24/32 24/32
Positioning repeatability mm ±0.10 ±0.10 ±0.10 ±0.10
Max. hit speed hpm 1200-1500 1200-1500 1200-1500 1200-1500
1mm step hit speed hpm 600 600 600 600
25mm step hit speed hpm 320 320 320 320
Max. traversing speed m/min 85 85 85 85
Turret rotation rpm 30 30 30 30
Machine axes 4 + 1 4 + 1 4 + 1 4 + 1
No. of index station 2/3/4 2/3/4 2/3/4 2/3/4
Max. rotation diameter mm Ø88.9 Ø88.9 Ø88.9 Ø88.9
Compressed air pressure bar 6 6 6 6
Shipping dimensions mm 5020x2680x2466 5020x4000x2466 5020x5000x2466 5570x4000x2466
Machine weight ton 18 19.5 21 22.5
Type O-Type O-Type O-Type O-Type
