Features:

  1. Adopt the steel welded frame with high rigidity which is the most popular style in the world, stable accuracy and nice out looking.
  2. Adopt import high sensitive combined clutch, ensure the ram working accurately, lower noise, easy for maintain, long life working.
  3. Adopt intelligent motor electricity economizer device for save power and soft start up function.
  4. Adopt import hydraulic overload safety mechanism, could emergency stop machine during over load working pressure. It is more safety for the operator and machine, and auto re-set once the over load released.
  5. Adopt press environment protect technology, combined safety valve and air muffler together, ensure lower noise, reclaim the exhaust oil completely, better for working conditions.
  6. Ram is square six side guide rail, high rigidity and precision, air ressure balance device is better to control the ram working precision.
  7. Crank, transmission shaft, gear, guide rail have heat treatment machining, it is long life working and wearable placidity.
  8. Adopt Japanese PLC, cam controller, bearing, and others high quality seals, electrical components, ensure the reliability on the whole of machine.
  9. Manual and electrical lubricate hydraulic system, could auto lubricate and warning system.
  10. The optional device for this machine is air cushioning, laser safe, and aside feeding system, could get single machine robotization.



Standard Accessories:

  1. Hydraulic Overload Protector
  2. Intelligent Motor Electricity Economizer
  3. Manual Grease Lubrication
  4. Handle Slide Adjustment Device(nuder HCP-60A)
  5. Electrical Slide Adjustment Device(over HCP-80A)
  6. Die Height Indicator(under HCP-60A)
  7. Electrical Die Height Indicator(over HCP-80A)
  8. Counter Balance
  9. Rotary Cam Limit Switch R-10
  10. Crank Angle Indicator
  11. Preadjustment Counter
  12. Air Source Socket
  13. Pneumatic Feeding Device
  14. Overrun Safeguard
  15. Liftout Device On Slide Block



Optional Accessories:

  1. Die Cushion
  2. Motorized Grease Lubrication System
  3. Eddy Current V.S Motor
  4. Photoelectric Safely Device
  5. Lights For Tooling Area
  6. Footswitch Operation
  7. Magnetic Stroke Counter
  8. Error Feeding Detector
  9. Quick Die Change System
  10. Power Socket
  11. Anti-vibration Rubber Pads

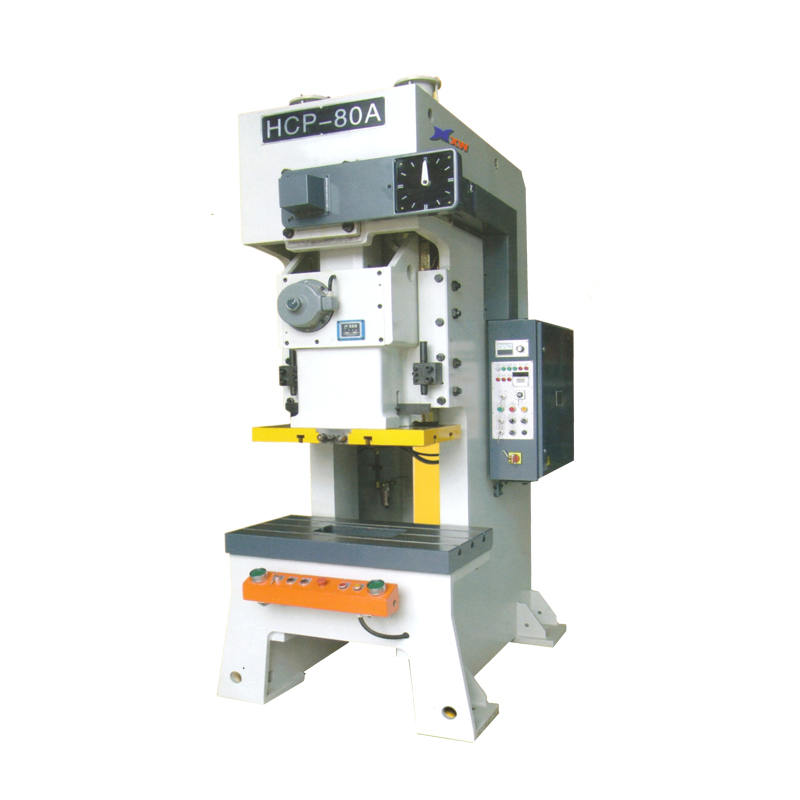

Model HCP-25A HCP-35A HCP-45A HCP-60A HCP-80A HCP-110A HCP-160A HCP-200A HCP-260A
S V S V S V S V S V S V S V S V S V
Nominal Capacity ton 25 35 45 60 80 110 160 200 260
Nominal Capacity Stroke mm 3.2 3.2 3.2 4 4 6 6 6 7
Slide Stroke mm 60 70 80 120 150 180 200 200 250
No. of Stroke Continuous mm 100 60-140 80 40-120 70 40-100 60 35-90 60 35-80 45 30-60 35 20-50 35 20-50 30 20-40
Intermittent S.P.M 50 40 35 30 30 35 20 20 15
Die Set Height S.P.M 200 220 240 300 330 350 450 450 500
Die Set Height Adjustment mm 50 55 60 75 80 80 100 100 120
Distance From SliderCenter to Main Frame mm 155 205 225 225 280 305 405 415 430
Distance Between Columns of Body mm 428 488 500 526 534 616 680 825 920
Table Dimension (WxL) mm 300×680 400×850 440×900 500×950 550×1000 600×1150 800×1250 820×1400 840×1500
Hole of Bolster Plate mm 120×260 140×280 150×300 160×320 180×360 200×400 200×400 240×480 260×520
Bolster Thickness mm 70 70 85 90 100 120 150 170 180
Size of the Slider Bottom (WxL) mm 245×470 285×520 350×560 400×700 420×700 470×920 550×900 630×1000 700×1200
Tooling Hole Size (Dia x Depth) mm φ35×50 φ38×50 φ38×60 φ50×70 φ950×70 φ50×80 φ65×90 φ65×90 φ65×100
Max. For Punch Weight Kg 90 110 130 160 220 280 340 480 600
Main Motor HPxP 3×4 5×4 3×4 5×4 5×4 7.5×4 5×4 7.5×4 7.5×4 10×4 10×4 15×4 15×6 20×4 20×6 25×4 25×6 30×4
Die Cushion Model – SA-2.3 SA-2.3 SA-3.6 SA-3.6 SA-6.3 SA-10 SA-14 SA-14
Capacity – 23 23 36 36 63 10 14 14
Stroke mm – 50 50 70 70 80 80 100 100
Pad Area mm – 300×230 300×230 350×300 450×310 500×350 650×420 710×480 810×480
Air Pressure Kgf/cm2 5.5 5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Machine Weight Kg 1800 3000 3800 5600 6800 9600 16200 23000 32000
Dimensions (LxWxH) mm 1325x867x2145 1375x1010x2350 1575x2435x2435 1600x1110x2785 1780x1205x2980 1930x1330x3190 2315x1390x3670 2615x1690x4075 2780x1850x4470
