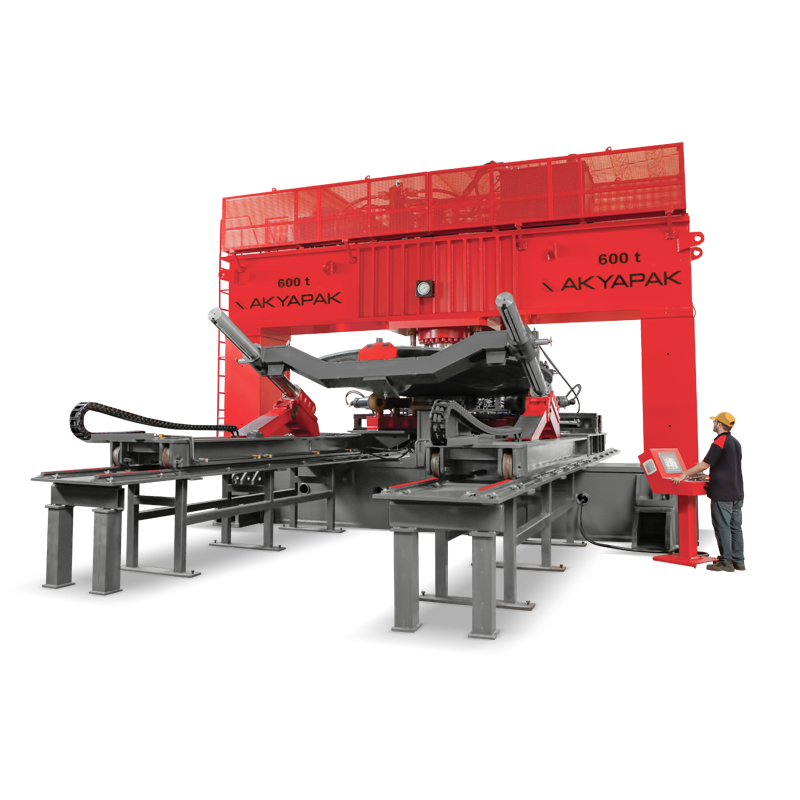

AKYAPAK exposes its experience in all metalworking and forming areas. AKYAPAK, being conducting research for higher quality solutions to dishing and flanging industry, is also really assertive with its dishing and flanging machines in this sector.
STANDARD FEATURES
- The frame of the machine is made by high alloy steel and MIG welded. The frame is also stress releived to process to have tighter tolerances after welding operation.
- The dies are made of special steel with heat-treated.
- A special primer applicated on all body before painting for a long term corrosion resistance.
- Safety barriers and stair on the machine is used to enable maintenance.
- Cylinder, body and piston groups are heat-treated and chromium plated.
- Minimum number of lubricating points are used by using self-lubricated components.
- It is easy to operate main cylinder, manipulator positions and diagnostics/alarms of all the functions, stopping in any positions.
- Since dies of our machines are bigger than standard dies, total labour hours for a piece reduced by half in comparison with operation by smaller dies.
| Model | BMB P |
| Working strok of the piston | 1000 mm |
| Distance between the uprights | 5100 mm |
| Fixed lower die holder dimensions | 1200×900 mm |
| Fixed upper die holder dimensions | 1200×900 mm |
| Max. distance between top and lower basement | 1150 mm |
| Max. distance between top and lower moulds | 500 mm |
| Max. distance between fixable moulds | 1050 mm |
| Max. working pressure | 250 kg/cm2 |
| Nominal power | 500 ton |
| Fast descent speed of the piston | 8 m/min |
| Total power | 75 kw |
| Length | 6000 mm |
| Widht | 2500 mm |
| Height | 4500 mm |
| Weight | 25 ton |
