AKYAPAK exposes its experience in all metalworking and forming areas. AKYAPAK, being conducting research for higher quality solutions to dishing and flanging industry, is also really assertive with its dishing and flanging machines in this sector.

Categories: ,

STANDARD FEATURES

  • The electro-welded frame is made of ST52-3 special steel making the machine robust and solid
  • Shaping Rolls, designed as per the radius requested are made of strenghened, induction hardened steel with uniform 60 HRC hardness
  • Material centralization mechanism moves upwords and downwords or/and forward and backwards manually
  • While flanging, materials movement is one way and it is clockwise
  • Hydraulic and electrical control systems are located on the machine
  • Bottom roll group has standard number of rotation
  • Greasing of the machine needs to be done by the operator manually
  • Working pressure of hydraulic system and the movement of hydraulic cylinders are controled from control panel on the machine



SPECIAL EQUIPMENT

  • Special roll shapes for custom requirements





DETAILS TECHNIQUES

  • Moteur standard: 3 Phase/50• Plate Diameter (max.): 3000mm
  • Plate Diameter (min.): 800 mm
  • Flanging Diameter (Standard): R=50 mm
  • Plate Diameter (yield strength 25 kg/mm2):T= 15mm
  • Plate Diameter (yield strength 40 kg/mm2):T=l Omm
  • Working Pressure: 180 BAR
  • Electric Motor Power: 5,5 Kw
  • Lenght:2885mm
  • Height 1990mm
  • Width: 985 mm
  • Weight 2250kg.
Technical Information Plate Diameter Max Plate Diameter Min Flanging Diameter Standard Working Pressure (BAR) Weight
mm mm mm kg

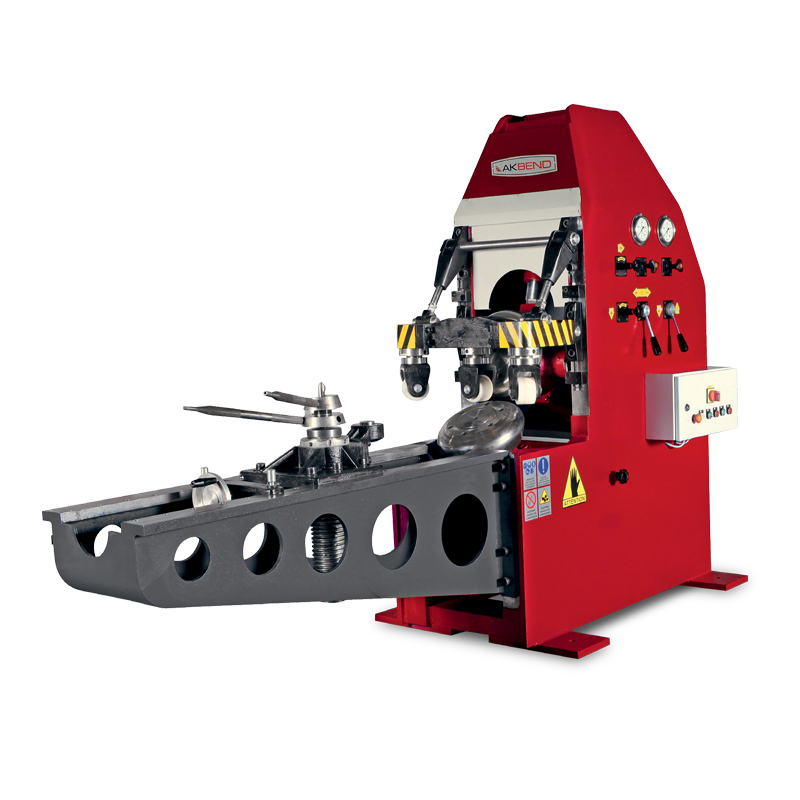

BMB 15 3000 800 R=50 180 2250
