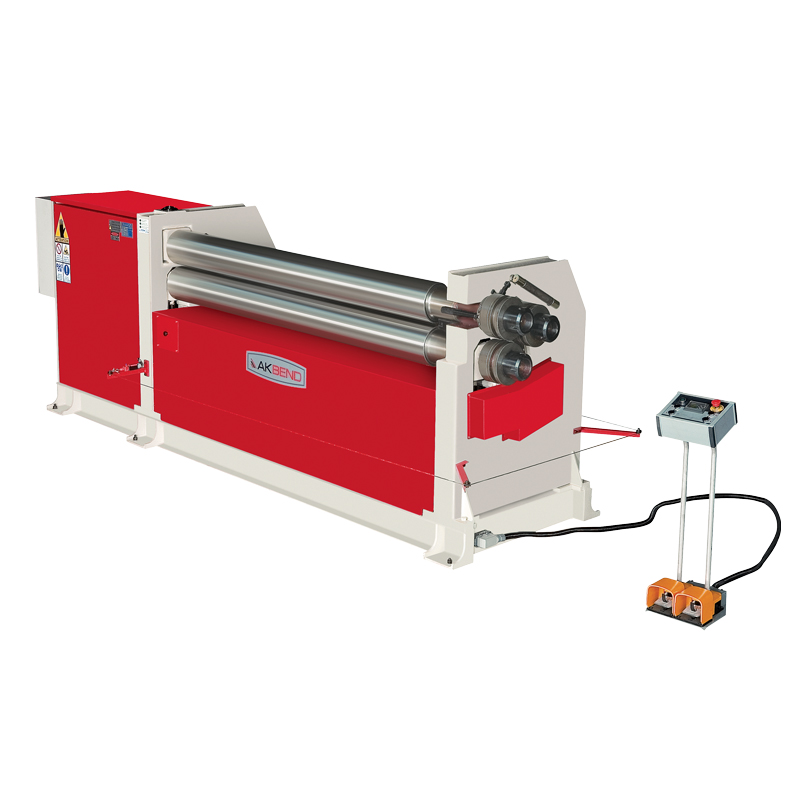

PERFECT RESULTS FOR THINNER SHEET METALS ASM-S with its user friendly outstanding features, stands out as a asymmetric plate bending machine produced in high-tech Akyapak manufacturing process and have advanced technology. ASM-S offers a robust and powerfull machine with its fully welded steel frame. The top and lower rolls are driven by electric motor + gearbox + gear system.
OPTIONAL EQUEPMENTS
- Digital display for back roll
- Lower roll with motor
- Extended rolls.
- Profile rolls.
- Motors in variable voltage and frequency
- Driven side roll
STANDART FEATURES
- Induction hardened rolls.
- Motorized back roll
- Cone bending device.
- Steel construction (St-52) body
- Rolls are produced by special steel.
- Asymmetrical working principle.
- Central rollers powered with electric motor+gearbox and gear system.
- Top roll that can be swiveled out.
- Separate moving control panel.
- Production quality certified by CE, ISO9001 – 2008, TSEK ve TURQUM.
| Technical Information | Working Length | Pre Bending Thickness | Max. Thickness | Top Roll Ø | Min. Benging Ø | Motor Power | Bending Speed | Length | Height | Widht | Weight |
| mm | mm | mm | mm | mm | kw | m/dk m/min | mm | mm | mm | kg | |
| ASM-S 140-15/5 | 1600 | 5 | 6 | 140 | 210 | 2.2 | 6 | 2800 | 1060 | 750 | 1450 |
| ASM-S 140-25/3 | 2600 | 3 | 4 | 140 | 225 | 2.2 | 6 | 3150 | 1130 | 820 | 1900 |
| ASM-S 170-15/7 | 1600 | 7 | 8 | 170 | 225 | 4 | 4.5 | 3150 | 1130 | 820 | 1900 |
| ASM-S 170-20/5 | 2100 | 5 | 6 | 170 | 225 | 4 | 4.5 | 3650 | 1130 | 820 | 2300 |
| ASM-S 170-25/4 | 2600 | 4 | 5 | 170 | 225 | 4 | 4.5 | 4150 | 1130 | 820 | 2750 |
| ASM-S 170-30/3 | 3100 | 3 | 4 | 170 | 225 | 4 | 4.5 | 4650 | 1130 | 820 | 3200 |
| ASM-S 190-20/6 | 2100 | 6 | 7 | 190 | 285 | 4 | 5 | 3900 | 1200 | 920 | 3600 |
| ASM-S 190-25/5 | 2600 | 5 | 6 | 190 | 285 | 4 | 5 | 4400 | 1200 | 920 | 4200 |
| ASM-S 190-30/4 | 3100 | 4 | 5 | 190 | 285 | 4 | 5 | 4650 | 1200 | 920 | 4600 |
| ASM-S 200-20/7 | 2100 | 7 | 8 | 200 | 300 | 5.5 | 5 | 3900 | 1250 | 950 | 3800 |
| ASM-S 200-25/6 | 2600 | 6 | 7 | 200 | 300 | 5.5 | 5 | 4400 | 1250 | 950 | 4400 |
| ASM-S 200-30/5 | 3100 | 5 | 6 | 200 | 300 | 5.5 | 5 | 4650 | 1250 | 950 | 4800 |
