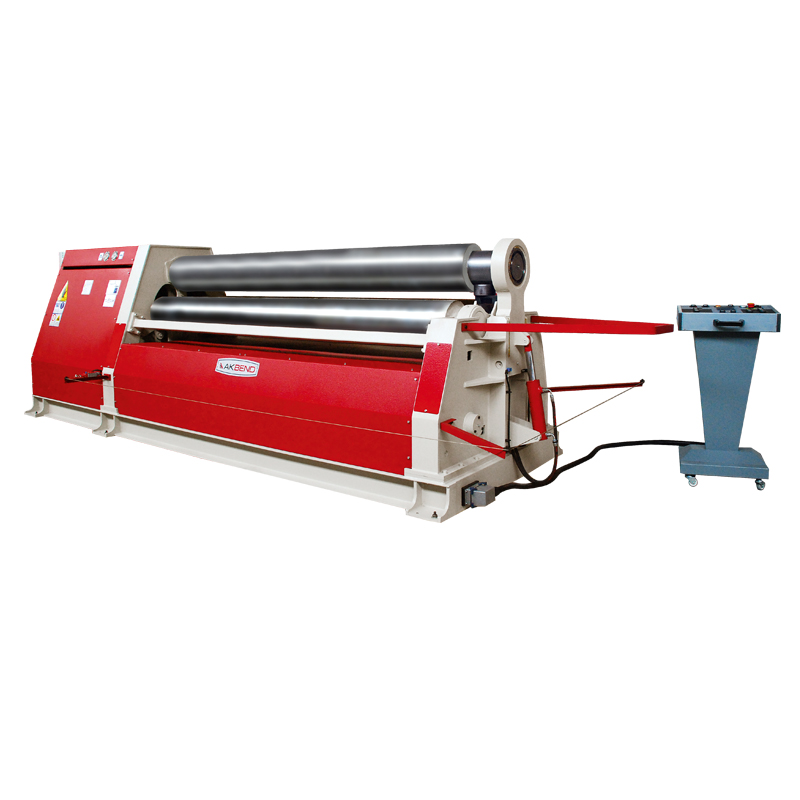

Akyapak manufactures 3 rolls hydraulic plate bending machines with capacity in thickness from 2 mm to 200 mm and in width from 500 mm to 12000 mm. Frames of our machines are made of welded steel (St-52). Roll shafts and bearings are of high quality and robust in terms of bending moment. All 3 rolls are independently driven by hydraulic motors and gearboxes on 3 rolls plate bending machines whose top roll diameter is 230 mm or larger. As for the machines whose top roll diameter is smaller than 230 mm, top roll is driven by gearbox and lateral rolls are driven by hydraulic motors independently.

Categories: ,

Standard Features:

  • Cone Bending Device
  • Induction Hardened Rolls
  • Digital Display for both Side Rolls
  • Fully welded steel (St-52) frame
  • Independent moving control panel
  • Two bending speeds
  • All rolls are mounted in spherical roller bearing
  • Drop end opened and closed hydraulically and controlled from control panel. When the drop end is opened, upper roll tilts up automatically.
  • Cone opening and closing controlled on control panel.
  • All 3 rolls are independently driven by hydraulic motors and gearboxes on the machines whose top roll diameter is 230 mm or larger. As for the machines whose top roll diameter is smaller than 230 mm, top roll is driven by gearbox and lateral rolls are driven by hydraulic motors independently.
  • Production quality certified by CE, ISO9001 – 2008, TSEK ve TURQUM





Optional Feature

  • Infinitevely variable speed of rotation
  • Side and Central supports for big sheet metal diameters
  • Material feeding table with various features
  • Interchangeable top roll for tighter diameters
  • Oil cooling system
  • Motors in variable voltage and frequency.
Technical Information Working Length Max. Thickness Pre Bending Thickness Top Roll Ø Side Roll Ø Motor Power Length Height Widht Weight
mm mm mm mm mm kw mm mm mm kg
AHK 20/04 2100 6 4 160 180 2.2 3947 1160 1080 2100 Min ø : Top Roll ø x 3
AHK 20/06 2100 8 6 190 180 3 3947 1160 1080 2950
AHK 20/08 2100 10 8 210 190 7.5 3947 1160 1080 3950
AHK 20/10 2100 13 10 230 210 7.5 4030 1275 1370 4400
AHK 20/13 2100 16 13 270 250 11 4180 1384 1440 5250
AHK 20/16 2100 20 16 300 270 15 4442 1630 1620 6900
AHK 20/20 2100 25 20 330 300 15 4225 1824 1810 8550
AHK 20/25 2100 30 25 360 330 19 4500 2000 1900 9400
AHK 20/30 2100 40 30 390 360 22 4835 2174 1930 17000
AHK 20/35 2100 45 35 430 390 30 5193 2405 2200 19300
AHK 25/04 2600 6 4 190 170 3 4447 1160 1080 3250 Min ø : Top Roll ø x 3
AHK 25/06 2600 8 6 210 190 7.5 4447 1160 1080 4150
AHK 25/08 2600 10 8 230 210 7.5 4530 1275 1370 5000
AHK 25/10 2600 13 10 270 250 11 4680 1384 1440 5700
AHK 25/13 2600 16 13 300 270 11 4942 1630 1620 7650
AHK 25/16 2600 20 16 330 300 15 4725 1824 1810 9500
AHK 25/20 2600 25 20 360 330 18.5 4873 1861 1880 11900
AHK 25/25 2600 30 25 390 360 22 5335 1974 2130 14200
AHK 25/30 2600 40 30 430 390 30 5500 2150 2150 18650
AHK 30/04 3100 6 4 210 190 7.5 4947 1160 1080 4350 Min ø : Top Roll ø x 3
AHK 30/06 3100 8 6 230 210 7.5 5030 1275 1370 5150
AHK 30/08 3100 10 8 270 250 11 5180 1384 1440 7000
AHK 30/10 3100 13 10 300 270 11 5442 1630 1620 8500
AHK 30/13 3100 16 13 330 300 15 5225 1824 1810 10800
AHK 30/16 3100 20 16 360 330 15 5373 1861 1880 13200
AHK 30/20 3100 25 20 390 360 18.5 5835 1974 2130 16260
AHK 30/25 3100 33 28 430 390 22 6000 2150 2150 20300
AHK 30/30 3100 35 30 440 340 22 6060 2180 2200 21000 Min ø : Top Roll ø x 5
AHK 30/30 3100 40 32 460 420 30 6193 2429 2200 29000 Min ø : Top Roll ø x 3
AHK 30/35 3100 45 35 480 380 30 6470 2585 2300 30500 Min ø : Top Roll ø x 5
AHK 30/35 3100 45 35 510 460 45 6300 2800 2500 31000 Min ø : Top Roll ø x 3
AHK 40/04 4100 6 4 270 250 7.5 6180 1384 1440 8000 Min ø : Top Roll ø x 3
AHK 40/06 4100 8 6 300 270 7.5 6442 1630 1620 9000
AHK 40/08 4100 10 8 330 300 7.5 6225 1824 1810 13500
AHK 40/10 4100 13 10 360 330 11 6373 1861 1880 14500
AHK 40/13 4100 16 13 390 360 15 6853 1974 2130 18750
AHK 40/16 4100 20 16 430 390 18.5 7000 2150 2150 23000
AHK 40/20 4100 25 20 460 420 22 7193 2429 2200 31000
AHK 40/25 4100 30 25 510 460 30 7300 2800 2500 33000
AHK 40/28 4100 35 28 540 510 37 7300 2800 2500 45000
