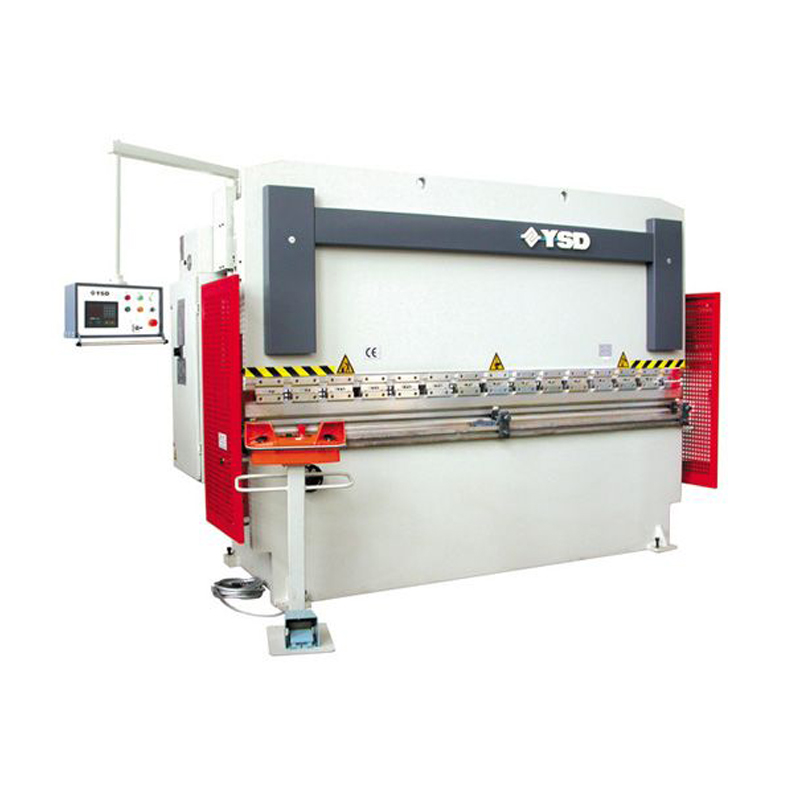

PPT(K) series press brakes is characterized by a mechanical forced synchronization system, which gives effective and precise control over the bending process. Sliders are made to move in parallel through the torsion axis, so as to achieve synchronization. For PPT(K) hydraulic servo (NC) bending machine, the nominal pressure is 40 tons to 200 tons and the width of plates for folding 1.25 meters to 4 meters.

Categories: ,

Characteristics

  1. PPT(K) series press brakes are equipped with mechanical forced synchronization system, which is simple, effective and precise.
  2. Sliders move in parallel with the driving force from torsion axis, so as to achieve synchronization.
  3. The position of mechanical block determines the state of termination.
  4. Numerical control is available for the bending machine.
  5. The press brakes have nice appearance and graceful outline.
  6. It’s easy to operate, maintain and regulate this type of press brakes.



PPT Series Mechanical Level System

PPT(K) series bending machines adopt a simple, efficient and accurate mechanical system for synchronism. Additionally, a torsion bar is used to ensure the parallelism between the beams.



YSD strictly meet with the standards certification including ISO9001, CE, CSA, HPS, DHC, etc, so as to ensure high quality of hydraulic bending machines YSD has been listed on the Shenzhen Stock Exchange in China since 1998. We are capable of producing high-quality hydraulic bending machines to satisfy needs of customers in all kinds of industries throughout the world.



Model 40/12.5 50/20 70/30 100/25 100/30 135/30 165/30 200/30 200/40 250/30
Press force (Ton) 40 50 70 100 100 135 165 200 200 250
Working Lenght (mm) 1250 2000 3000 2500 3000 3000 3000 3000 4000 3000
Dist.between uprights 1050 1640 2550 2050 2550 2550 2550 2500 3150 2550
Stroke of ram (mm) 100 100 100 130 130 130 150 150 150 200
Ram travel adjustment (mm) 80 80 80 110 110 110 120 120 120 140
Daylight (mm) 300 300 300 310 310 310 350 400 400 425
Throat depth (mm) 200 200 300 300 300 300 300 300 300 300
Width of table (mm) 140 140 140 180 180 180 180 180 180 250
Approaching speed (mm/s) 100 78 100 100 100 100 100 100 100 100
Working speed (mm/s) 10 7 7 8 8 8 8 7 7 8.5
Returning speed (mm/s) 90 80 88 60 60 60 68 75 75 75
Motor power (kw) 3 3 4 5.5 5.5 7.5 11 15 15 22
Approx.weight (kg) 2000 2700 4850 5820 6270 7500 8500 10500 14000 13500
Backgauge travel (mm) 400 400 600 600 600 600 600 600 600 600
Volume of oil tank (L) 63 63 100 125 125 125 165 165 165 200
Lenght of machine (mm) 1555 2160 3145 2645 3145 3145 3145 3145 4000 4000
Width of machine (mm) 1060 1195 1275 1330 1330 1435 1550 1560 1565 1800
Height of machine (mm) 2149 2100 2110 2420 2420 2420 2560 2595 2935 3280
