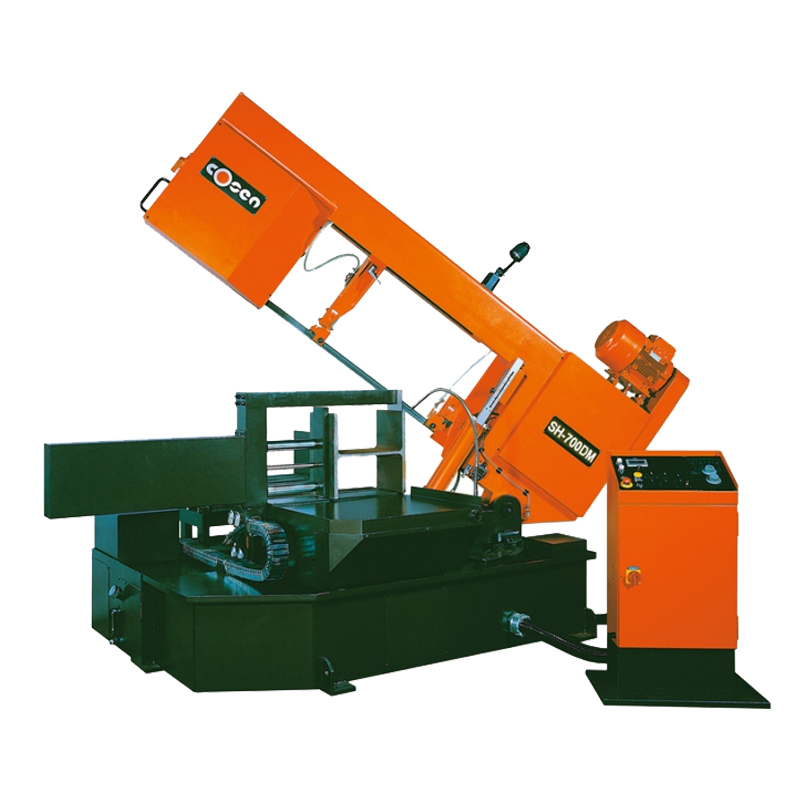

Semi-Automatic Swivel Head Double Mitering The swivel sawhead allows the user to lock and cut at any angle up to 60°. The precision pivot system facilitates easy and accurate adjustment for angle cuts. Cosen’s SH-650M/600DM/700DM utilize a protractor and pointer in clear view and away from any chips covering the numbers.
FEATURES :
Structure
- Swivel sawhead mitering from 90 to 60 degrees; 45 degree to both directions
- Rigid and heavy-duty pivot and trunion
- Sturdy cast work table
- 5″ solid discharge table with coolant return
Blade Drive
- Variable speeds from 80 fpm thru 350 fpm
- Infinitely variable blade speed (option)
Blade Guidance & Lubrication System
- Carbide blade guides with roller bearings
- Two additional bearings to support blade from the top
- Cast iron guide arm supported by heavy-duty cast iron dovetail Control &Automation
- Precision feed pressure & feed rate dual valve system
- Conveniently designed control station
- Electrical components located inside the control box with main lockout disconnect
- Work height selector
- Industrial rated hydraulic components Standard Accessories
- Built-in adjustable material stop
- Adjustable work light
- Additional flushing hose
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
| Max. Capacity | Round | 450 mm | 450 mm | 300 mm |
| Rectangular (HxW) | 450×700 mm | 450×520 mm | 450×300 mm | |
| Blade | Size | 5800Lx51Wx1.3Tmm | ||
| Speed | 20 – 100 m/min | |||
| Tension | Hydraulic | |||
| Motor | Blade | 5.6KW | ||
| Hydraulic | 0.75KW | |||
| Coolant | 0.1KW | |||
| Tank | Hydraulic | 45L | ||
| Coolant | 120L | |||
| Work Bed height | 750mm | |||
| Gross Weight | 2400kgs | |||
| Floor Space (LxWxH) | 2700x3150x2720mm | |||
