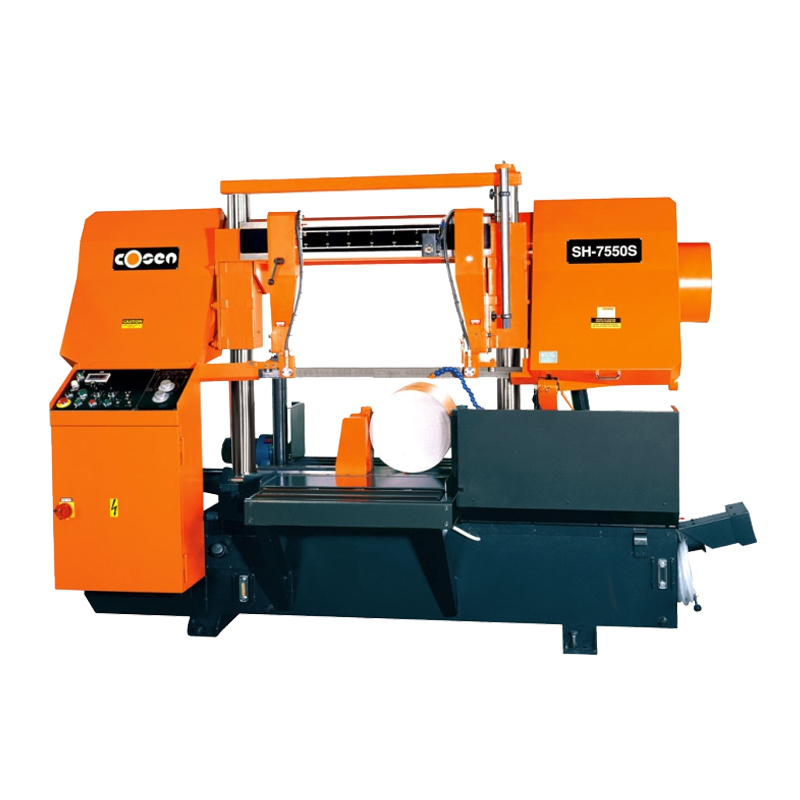

Semi-Automatic Canted Frame Straight Cutting Saws Offered in semi-automatic and NC automatic types, these straight cutting bandsaws adopt the canted frame design available from 0° to 7.5° or 10°, which is particularly useful when cutting structural material giving you better cutting efficiency and blade life. The dual column, cross link and saw frame hydraulic cylinders as a group form a very rigid structure maximizing your productivity particularly in pack cutting.

Features:

Offered in semi-automatic and NC automatic types, these straight cutting bandsaws adopt the canted frame design available from 0° to 7.5° or 10°, which is particularly useful when cutting structural material giving you better cutting efficiency and blade life. The dual column, cross link and saw frame hydraulic cylinders as a group form a very rigid structure maximizing your productivity particularly in pack cutting.

Capacity Round 560 mm
Capacity Rectangle (HxW) 520×760 mm
Blade Speed 20-100 m/min
Blade Size (LxWxT) 6665x54x1.6
Blade Motor 7.5HP (Option:10HP)
Hydraulic Motor 2HP
Coolant Motor 1/4HP
Workbed Height 700 mm
Gross Weight 2400 kgs
Floor Space (WxLxH) 1360x3375x2415 mm
*Design and specifications are subject to change without notice & obligation.
*Machines may be shown with some options.
