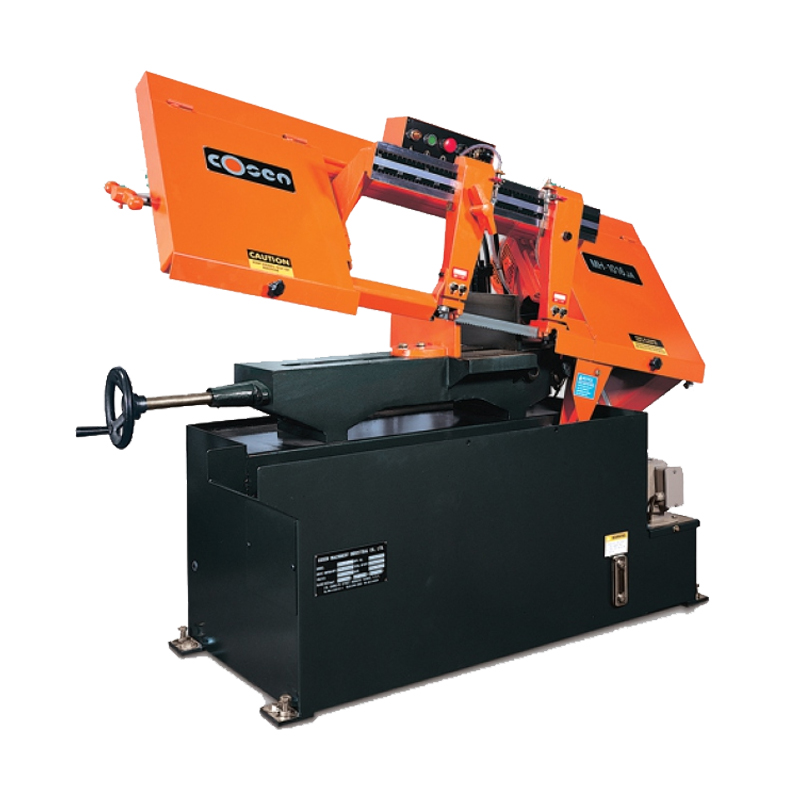

The Cosen Manual Series Band Saw comes equipped with manual vise and adjustable hydraulic down feed( except MH-270M/MH-210M). It is an ideal tool for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and limited run production work. It is a great machine for cutting solids, square, round, rectangle and tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
FEATURES:
Structure
- Heavy-duty hydraulic cylinder with precision ground hinge support
- Cast iron quick set up vise • Large rugged base with built-in coolant & hydraulic system
Blade Drive
- 2 hp motor, heavy-duty reducer, & variable step drive assembly
- 4-speed transmission with the best worm gear and shaft
Control & Automation
- Down feed rate & cutting pressure control via hydraulic down feed valve
- Conveniently designed control station at chest level
Standard Accessories
- Easy blade change with front access at waist level • Bi-metal saw blade • Tool box, leveling pads, and an additional wire brush • Operation & parts manual
| Max. Capacity | 250 mm | |
| 230 mm | ||
| 230×370 mm | ||
| Saw Blade | ||
| Size (LxWxT) | 3350x27x0.9 mm | |
| Speed | 50 Hz | 19, 31, 48, 78 m/min |
| 60 Hz | 23, 37, 58, 93 m/min | |
| Tension | Manual | |
| Motor Output | ||
| Saw Blade | 2 HP | |
| Hydraulic | 0.25 HP (0.1875 kW) (for SH-10163A only) | |
| Coolant | 0.125 HP | |
| Height of Work Bed | 650 mm | |
| Weight | 432 kgs | |
| Floor Space (LxWxH) | 1680x710x1780 mm | |
