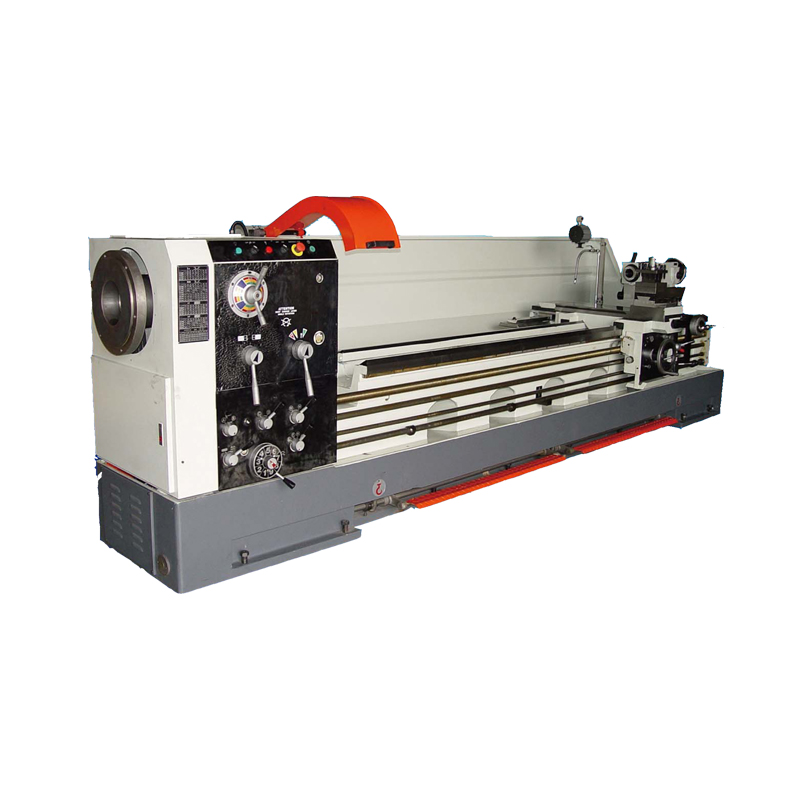

Technical Data MODEL DY-680G  DY-780G  DY-880G  DY-980G
Swing Distance between centers 1100/1600/200/2500/3000/3500/4000/5000/6000/7000/8000/9000/10000mm
Swing over bed 680mm 780mm 880mm 980mm
Swing over cross slide 440mm 540mm 640mm 740mm
Over gap swing (mm) 970×482 1070×482 1170×482 1270×482
Height of center (over bed) 340mm 390mm 440mm 490mm
Bed Bed width 458mm
Headstock Spindle nose ASA A2-11 (D1-11) / A2-15
Spindle bore 105mm /155mm[Opt] / 230mm[Opt]
Spindle speed (rpm) 12, 20, 29, 40, 55, 85, 120, 175, 300, 445, 650, 1000 / 10, 17, 25, 36, 47, 70, 100, 150, 245, 370, 540, 800
Number of spindle speed 12 steps
Feeds-Thread Leadscrew 045 mm. 4T.P.I. or 6 pitch
Number of feed changes 36
Longitudinal feed range 0.05-0.70mm/rev
Cross feed range 0.025-0.35mm/rev
Inch threads 2-28 T.P.I. (36 kinds)
Metric threads P0.8-14mm (65 kinds)
D.P. No. / range D.P 4-56 (36 kinds)
Module pitches No. / range MOD 0.5’7 (22 kinds)
Tool slide Cross slide travel 340mm 390mm 440mm 490mm
Compound rest travel 240mm
Tailstock Quill travel 210mm
Quil diameter 105mm
Taper of center MT#6
Motor Main motor 15HP/4P, 15HP/4P[Opt.]
Rapid feed motor 1/4HP
Coolant pump 1/8HP
Length (mm) 2700/3200/3700/4200/4700/5200/5700/6700/7700/8700/9700/10700/11700mm
Width (mm) 1240
Height (mm) 1400 1450 1500 1550
N. W. (kg) 330/3600/3900/4200/4500/4800/5100/6100/7200/8300/9500/10700/11900kg
