Standard Accessories :

  • Coolant pump
  • Halogen work lamp
  • Auto lubrication system
  • Toolbox with hand tools
  • Extra gear to allow 1/ 2 feed rate
  • Centers & center sleeve
  • 3-position stop bar



Optional Accessories :

  • 3-jaw strong chuck 10”
  • 3-jaw strong chuck 12”
  • 3-jaw strong chuck 16” ( 122mmBORE)
  • 4-jaw chuck 14”
  • 4-jaw chuck 16”
  • 4-jaw chuck 20”
  • Face plate 20”
  • Quick change tool post
  • Rear Tool post
  • Rear spindle nose
  • Larger main motor 15HP
  • Larger main motor 20HP
  • Larger spindle bore 130mm/ D1-11
  • Taper attachment
  • 5-position carriage stop
  • Rolling center MT5 ( D1-8)
  • Steady rest 30~ 200mm
  • Steady rest 160~ 380mm
  • Follow rest 10~ 100mm
  • Soft jaw for 3-jaw strong chuck 10”
  • Soft jaw for 3-jaw strong chuck 12”
  • DRO 2 axis
  • Rear splash guard
  • Chuck guard

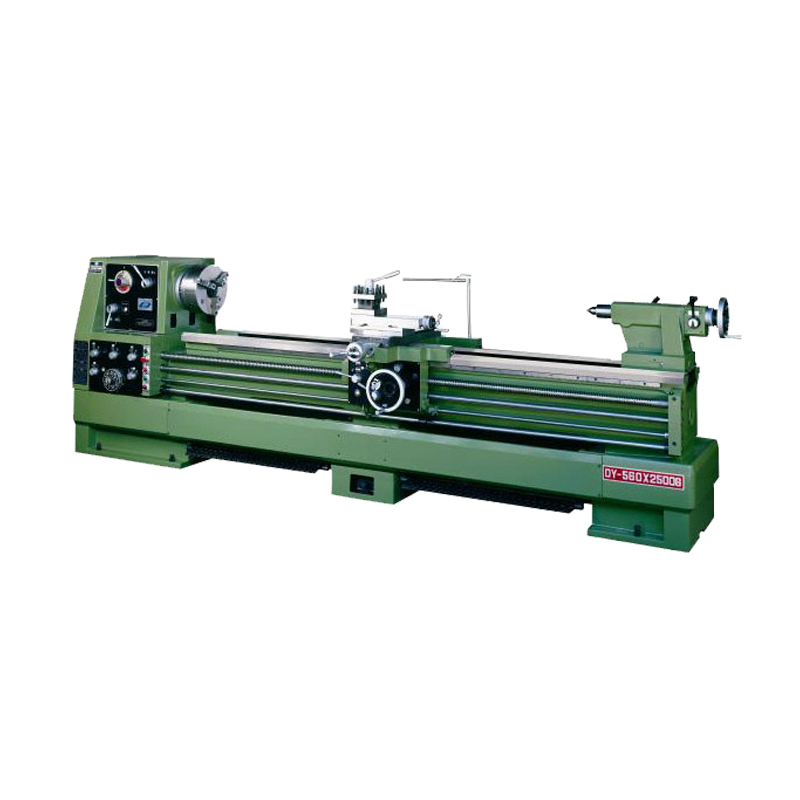

Technical Model Model DY-560G DY-660G DY-760G
Swing Distance between centers 1000/1500/2000/2500/3000/4000/5000/6000mm
Height of center (over bed) 280mm 330mm 380mm
Swing over bed 560mm 660mm 760mm
Swing over cross slide 310mm 410mm 510mm
Swing over gap 800mm 900mm 1000mm
Bed Bed width 410mm
Headstock Spindle nose D1-8 / D1-11[Opt]
Spindle bore 104mm /130mm[Opt]
Spindle speed (rpm) 25-1250rpm
Number of spindle speed 12 Change
Feeds-Thread Leadscrew 045 mm. 4T.P.I. or 6 pitch
Number of feed changes 36
Longitudinal feed range 0.05-0.70mm/rev
Cross feed range 0.025-0.35mm/rev
Inch threads 2-28 T.P.I.
Metric threads P0.8-14mm
D.P. No. / range D.P 4-56
Module pitches No. / range MOD 0.5-7
Tool slide Cross slide travel 380mm
Compound rest travel 255mm
Tailstock Quill travel II 180mm
Quil diameter 75mm
Taper of center MT#5
Motor Main motor 10HP / 15HP[Opt.]
Rapid feed motor 1/4HP
Coolant pump 1/8HP
Length (mm) 2800/3300/3800/4300/4800/5800/6800/7800mm
Width (mm) 1400
Height (mm) 1530 1630 1730
N.W. (kg) 2400/2700/3000/3300/3700/4500/5200/6000kg
