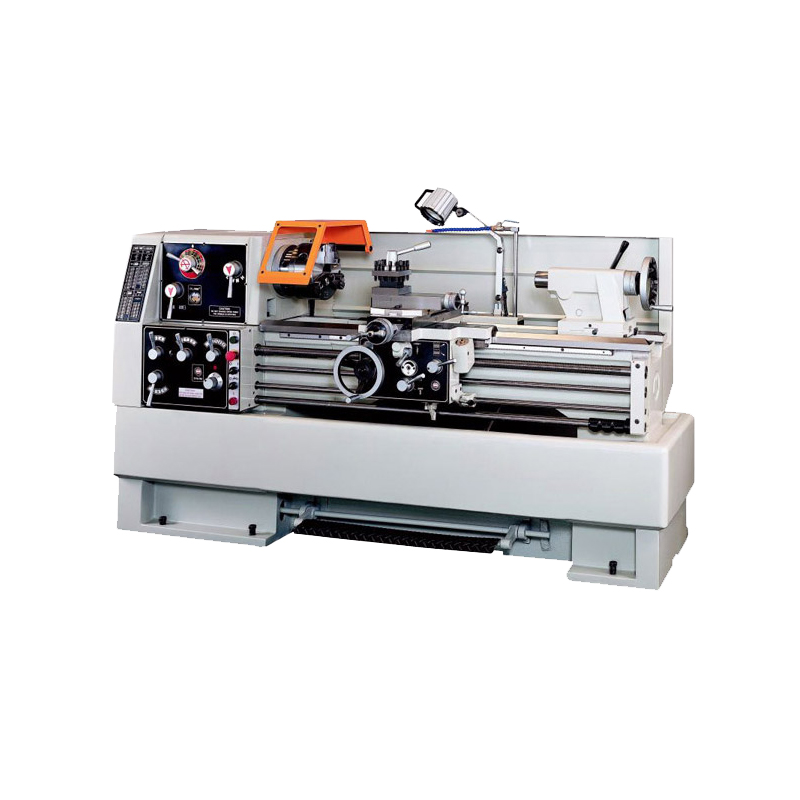

Standard Accessories:

  • Coolant pump
  • Halogen work lamp
  • Auto lubrication system
  • Toolbox with hand tools
  • Extra gear to allow 1/ 2 feed rate
  • Centers & center sleeve
  • 3-position stop bar



Optional Accessories:

  • 3-jaw scroll chuck 9”
  • 3-jaw strong chuck 9”
  • 3-jaw scroll chuck 10”
  • 3-jaw strong chuck 10”
  • 4-jaw chuck 12” ( D1-6)
  • 4-jaw chuck 14” ( D1-8)
  • Face plate 16”
  • Quick change tool post
  • Rear Tool post
  • Large spindle bore 102mm ( D1-8)
  • Larger main motor 10HP
  • Taper attachment
  • Rapid traverse X/ Z axes
  • 5-position carriage stop
  • Rolling center MT4 ( D1-6)
  • Rolling center MT5 ( D1-8)
  • 2 speed tailstock
  • Soft jaw for 3-jaw strong chuck 9”
  • Soft jaw for 3-jaw strong chuck 10”
  • Collet chuck 3-25mm
  • Rear splash guard
  • Lead screw guard
  • Chuck guard
  • DRO
Technical Data Model DY-410G DY-460G DY-510G
Swing Distance between centers 1100 / 1600 / 2100 / 3100 mm
Swing over bed 410mm 460mm 510mm
Swing over cross slide 230mm 270mm 320mm
Swing over gap 660mm 710mm 760mm
Height of center (over bed) 205mm 230mm 255mm
Bed Bed width 330mm
Headstock Spindle nose D1-6 D1-6: 63mm
Spindle bore 63mm D1: 8: 80mm / 102mm[Opt.]
Spindle speed (rpm) D1-6: 362000 rpm / D1-8: 36-1500rpm
Number of spindle speed 12 Change
Feeds-Thread Leadscrew 035 mm. 4T.P.I. or 6 pitch
Number of feed changes 32
Longitudinal feed range 0.04-1.0mm/rev
Cross feed range 0.02-0.5mm/rev
Inch threads 45 Kinds 2-72 T.P.I.
Metric threads 41 Kinds P0.2-14
D.P. No. / range 21 Kinds D.P 8-44
Module pitches No. / range 18 Kinds M 0.33.5
Tool slide Cross slide travel 260mm
Compound rest travel 127mm
Tailstock Quill travel 130mm
Quil diameter 65mm 75mm
Taper of center MT#4
Motor Main Motor 7.5HP / 10HP[OPT]
Coolant pump 1/8HP
Packing size LxWxH(mm) 1100mm 1600mm 2100mm 3100mm
DY-410G 2370 x 1100 x 1700 2880 x 1100 x 1700 3400 x 1100 x 1700 4410 x 1100 x 1700
DY-460G 2370 x 1100 x 1750 2880 x 1100 x 1750 3400 x 1100 x 1750 4410 x 1100 x 1750
DY-510G 2370 x 1100 x 1800 2880 x 1100 x 1800 3400 x 1100 x 1800 4410 x 1100 x 1800
Weight (approx) N. W. /G. W. 2000 / 2150 kg 2300 / 2450 kg 2800 / 3000 kg 3800 / 3650 kg
