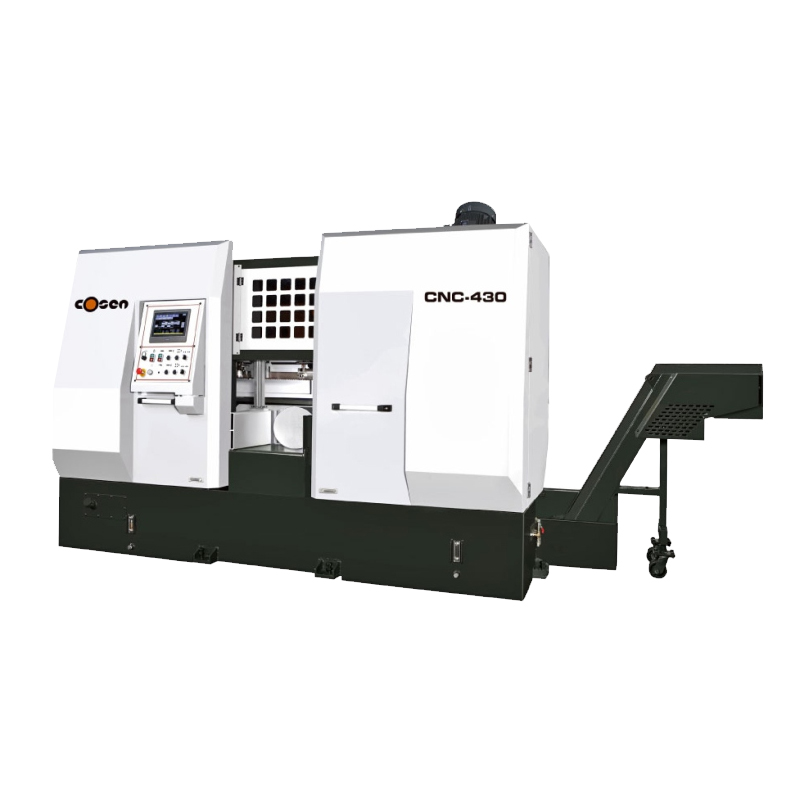

Intelligent CNC Performance Bandsaw Hard material like Inconel, Titanium, and Stainless Steel are expensive to cut due to extensive time consumption, tool costs, and demand of an experienced operator. With Cosen CNC-430, you are in full control by cutting hard material faster, extending blade life, and eliminating guesswork or operator error. The CNC-430 allows you to manage blades, work orders from office, and cut with recommended rates and storing favorite parameters. Cast-iron saw frame, 4 oversized linear rails, large cast-iron wheels with reinforcement arms, dual vibration dampeners, extra-large / wide guide arms and V_Drive further act to remove harmonics and vibration.
Features:
Hard material like Inconel, Titanium, and Stainless Steel are expensive to cut due to extensive time consumption, tool costs, and emand of an experienced operator. With Cosen CNC-430, you are in full control by cutting hard material faster, extending blade life, and eliminating guesswork or operator error. The CNC430 allows you to manage blades, work orders from office, and cut with recommended rates and storing favorite parameters. Castiron saw frame, 4 oversized linear rails, large cast-iron wheels with reinforcement arms, dual vibration dampeners, extralarge / wide guide arms and V_Drive further act to remove harmonics and vibration.
Capacity Height | 430 mm |
Capacity Throat | 430 mm |
Capacity Rectangle (HxW) | 430 x 430 mm |
Blade Speed | 10-120 m/min |
Blade Size (LxWxT) | 6050x54x1.6mm 6050x54x1.3mm |
Blade Motor | 10H P |
Hydraulic Motor | 3HP |
Coolant Motor | 1/2HP |
Feeding Servo Motor | 1.7HP |
Saw Bow Servo Motor With Brake | 1.7HP |
Height of Work Bed | 680kgs |
Floor Space (LxWxH) | 4300x2000x2400 mm |
*Design and specifications are subject to change without notice & obligation. *Machines may be shown with some options. |
