Kitamura Vertical Machining Centers From small to large Kitamura offers a wide variety of Vertical Machining Center configurations to handle your most demanding cutting conditions. An emphasis on rigidity in construction and ultra-high precision let customers supply high value-added services to their clients, entering new markets, expanding business and producing extreme tolerance work. High speed spindles and optional factory installed pallet changers increase spindle utilization and help to create a multi-tasking machining environment that optimizes up-time.
Features
- Enhanced control capability with Kitamura’s feature packed Arumatik-Mi control
- Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with solid box ways
- Versatile 15HP AC, 15,000rpm direct drive, dual contact spindle
- Plumbed and ready for coolant thru the spindle – can be added in field
- 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces
- Flexibility with the ability to add 4th/5th axis in the field

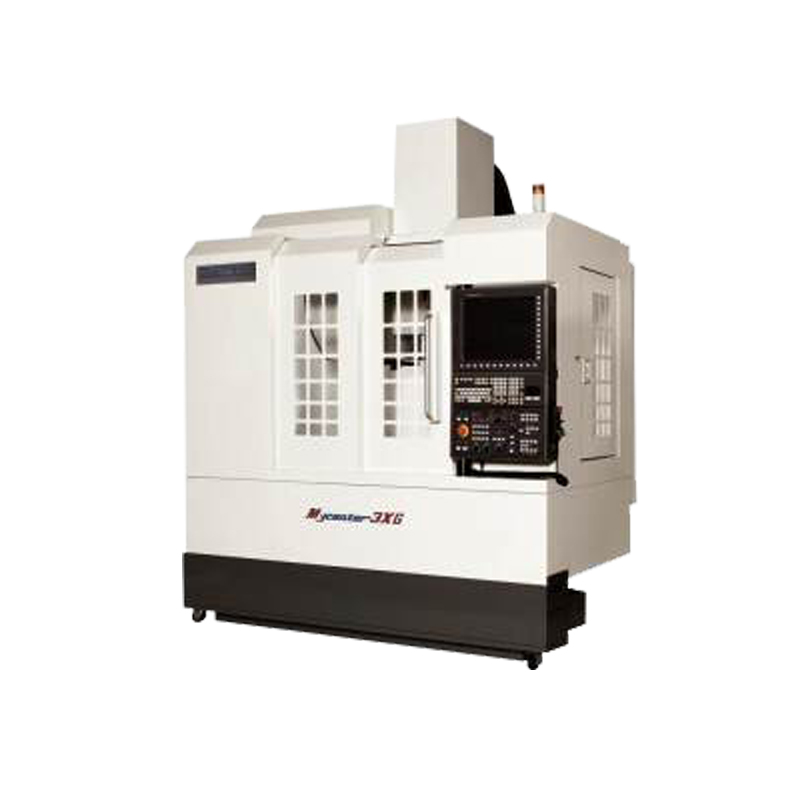

| Model | Mycenter-4XiF | Mycenter-7X | Mycenter-3XG | Mycenter-4XG | |
| Table Size | 552x1100mm | 650x1700mm | 410x900mm | 640x1270mm | |
| Travel (X, Y, Z) | 1016x510x510mm | 1530x650x686mm | 760x455x460mm | 1100x610x610mm | |
| Spindle Taper | NST No.40, NST No.50 | NST No.40, NST No.50 | NST No. 40 | NST No. 40 | |
| Spindle Speed | 40 Taper | 20~15000rpm (20-20000rpm opt.) |
20~10000Orpm (40-15000rpm opt.) |
40-15000rpm | 12000rpm |
| 50 Taper | 50~5000rpm (20-10000rpm opt.) |
50~5000Orpm (20-10000rpm opt.) |
|||
| Tool Storage Capacity | 30 pcs (40, 60) opt.) | 30 pcs (40, 60) opt.) | 30 pcs | 30 pcs | |
| Tool Change Time (T-T/C-C) | 1.4 sec/4.7 sec min 2.5 sec/8.0 sec min |
2.0 sec/6.5 sec min 2.5 sec/8.5 sec min |
1.6 sec/3.3 sec min | 2.0 sec/5.0 sec min | |
| Rapid Feed (X, Y x Z) | 1969x1417ipm (50x36m/min) |
945×787.4ipm (50x36m/min) |
1969x1417ipm (50x36m/min) |
1417x1181ipm (36x30m/min) |
|
| Power Requirement | 35KVA/40KVA | 35KVA/40KVA | 30KVA | 55KVA | |
