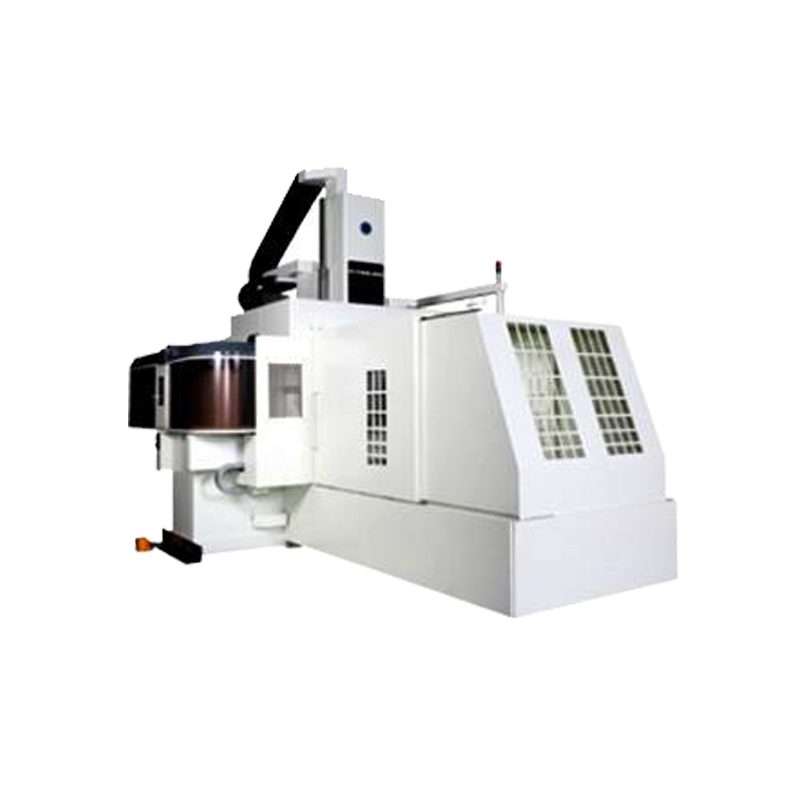

Kitamura Double Column Machining Centers Larger parts require larger capacity and increased rigidity in order to support heavier table loads. Kitamura’s Bridgecenter Double Column Machining Centers are designed for extreme cutting capacity, offering the benefits of solid box way construction, high speed/high torque spindle options, spacious work envelopes, and a patented double column bridge type design. Standard linear scale feedback and #40 and #50 taper spindle configurations make these machines ideal for the mold industry where high levels of accuracy are needed in roughing & finishing large cavities and cores.
Features
- Ideal for parts requiring heavier cutting loads, as well as parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Rigid Meehanite cast iron construction with induction hardened solid box ways
- #40, high speed, heavy duty 20,000rpm, 4-Step Geared, Dual Contact Spindle
- Double column design provides expansive work envelope and superior rigidity
- Linear scale feedback in X, Y, Z axes
- Space saving footprint takes up only 166 total square feet
- 6,600Lb table capacity
| Item | BRIDGEcenter-8F (40 Taper – 50 Taper) | |
| Table Size | 35.4″x98.4″ (900x2500mm) | |
| Travel (X, Y, Z) | 80.0″x42.7″x28.0″ (2032x1085x710mm) | |
| Spindle Taper | NST No. 40, NST No. 50 | |
| Spindle Speed | 40 Taper | 20 – 20000rpm |
| 50 Taper | 35~6000rpm (20~10000 rpm opt.) | |
| Tool Storage Capacity | 30 pcs (40, 60, 80 opt.) | |
| Tool Change Time (T-T/C-C) | 6.5 sec / 9.0 sec, 13.6 sec min | |
| Rapid Feed (X, Y x Z) | 945x945ipm (24x24m/min) | |
| Power Requirement | 35KVA / 40KVA | |
