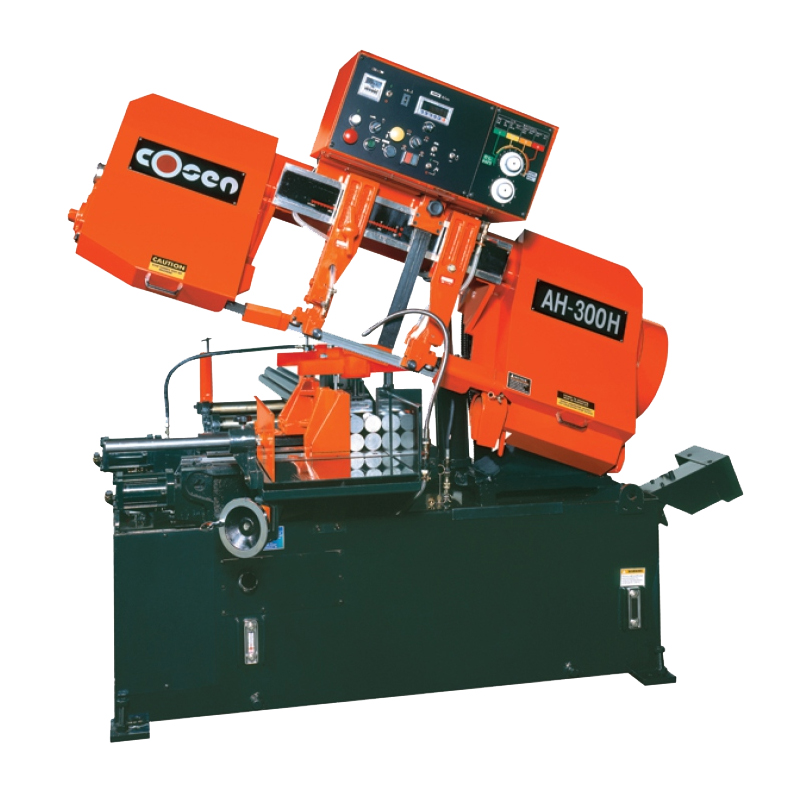

Fully Automatic with Hydraulic Shuttle Vise Cosen H-type machines utilize hydraulic shuttle feed system, which offers extremely tight tolerances in both cutting repeatability and accuracy evenat high cutting rates. These machines are built for high to extreme production needs. Ideal for job shops or production facilities requiring long term reliability. AH series band saws offer dependability, precision, and ruggedness at an affordable price.
Standard Features:
- Infinite blade speed control with inverter
● Split front vise
● Idle wheel motion detector
● Precision pressure and feed rate dual valve
● Hydraulic blade tension device
● Self lubricating carbide and roller guide
● Built in work light
● Double retracting vise
Optional Accessories:
- Mechanical stepless blade speed control device
● Full stroke hydraulic front/rear vises
● Vibration damper
● Hydraulic nesting fixture
● Power roller table
● Roller table (2M) with side roller
● Vise pressure regulator
● Hydraulic chip conveyor
● Deviation detector
| Model | AH-250H | AH-300H | AH-320H | AH-400H | AH-400H | AH-460H | |
| Max. Capacity | 250mm | 300mm | 320mm | 400mm | 400mm | 460mm | |
| 250x250mm | 300x300mm | 320x320mm | 400x400mm | 400x400mm | 460x460mm | ||
| 280x250mm | 340x300mm | 360x320mm | 400x400mm | 400x400mm | 460x460mm | ||
| Saw Blade | Speed | 15 – 100m/min | |||||
| Size | 3505x34x1.1mm | 3820x34x1.1mm | 4240x34x1.1mm | 4570x41x1.3mm | 4570x41x1.3mm | 4670x41x1.3mm | |
| Tension | Hydraulic | ||||||
| Motor Output | Saw Blade | 3HP | 5HP | 5HP | 7.5HP | 7.5HP | 7.5HP |
| Hydraulic | 1HP | 1HP | 1HP | 2HP | 2HP | 2HP | |
| Coolant Pump | 1/8HP | 1/8HP | 1/8HP | 1/4HP | 1/4HP | 1/4HP | |
| Tank Capacity | Hydraulic | 401L | 401L | 381L | 741L | 741 | 881L |
| Coolant | 641L | 641L | 581L | 841L | 841L | 841L | |
| Vise Control | Stationary & Movable Hydraulic Vise | Full Stroke Hydraulic front Vises | |||||
| Feeding | MODE | Hydraulic Automatic | |||||
| LENGTH | One stroke 403 mm, Max. 3627 mm (0-9 times) | One stroke 603 mm, Max. 5427 mm (0-9 times) | |||||
| Height Of Workbed | 6600mm | 660mm | 790mm | 750mm | 750mm | 770mm | |
| Gross weight | 1300kgs | 1500kgs | 1700kgs | 2400kgs | 2400kgs | 2500kgs | |
| Floor Space | 2090x1850x1700mm | 2180x1950x1770mm | 2180x2200x1990mm | 2650x2700x2400mm | 2650x2700x2400mm | 2650x2700x2510mm | |
