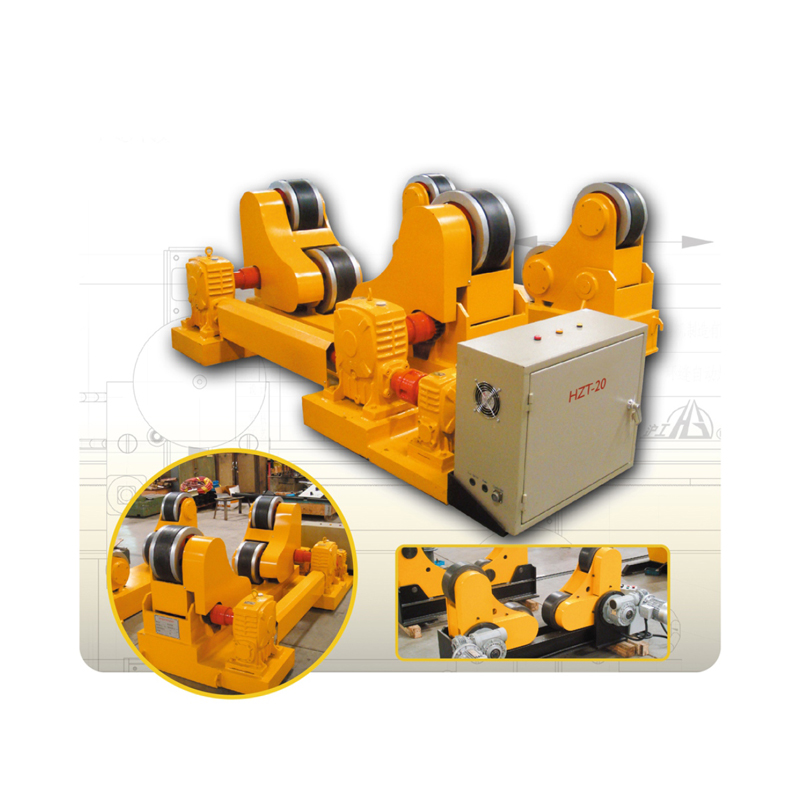

Description
- Accomplish work piece inside longitude seam welding or outside seam girth welding.
- Four roller gear mesh completely on mainframe, four-wheel drive
- Pivot angle automatically tuning according workpiece diameter, no need manual adjustment.
- Steel and rubber assembly roller with heavy carrying and driving capacity.
- Easy and reliable remote-control box could connect with our manipulator system for combined operation.
- Imported frequency converter stepless control, long start torque and high accuracy.
| Load Bearing (ton) | Linear Speed (mm/min) | Workpiece Diameter (mm) | Roller Diameter (mm) | LxWxH (mm) (kg) | Weight |
| 5 | 70/1200 | 250/3000 | 250 | 1670x700x600 | 1300 |
| 10 | 70/1200 | 300/3500 | 300 | 1960x700x815 | 1350 |
| 20 | 70/1200 | 500/4000 | 350 | 2160x780x945 | 1500 |
| 30 | 70/1200 | 500/4000 | 350 | 2250x810x995 | 1600 |
| 40 | 70/1200 | 600/4500 | 400 | 2650x880x890 | 1640 |
| 50 | 70/1200 | 600/4500 | 400 | 2960x1070x1130 | 3400 |
| 60 | 70/1200 | 750/4900 | 450 | 3550x1150x1150 | 3900 |
| 80 | 70/1200 | 850/5500 | 500 | 3550x1250x1370 | 8800 |
| 100 | 70/1200 | 900/6000 | 560 | 3950x1500x1560 | 9990 |
