Description

  • Single phase, IGBT AC/DC TIG, pulse TIG and DC MMA, fan cooled
  • Power indicator
  • Thermal protection
  • Digital display
  • Stepless current setting
  • Gas post flow
  • Gas pre flow
  • 2T/4T
  • Pulse frequency adjustment
  • Pulse current adjustment
  • Pulse width adjustment
  • Slope up
  • Slope down
  • Clean area adjustment





Accessories

  • TIG torch 1 piece
  • Earth cable with earth clamp and quick connector 1 piece
  • Gas hose with hoop and connector 1 piece
  • Accessories for TIG torch 1 piece



Optional Accessories

  • Welding cable with electrode holder
  • Regulator
  • Foot pedal

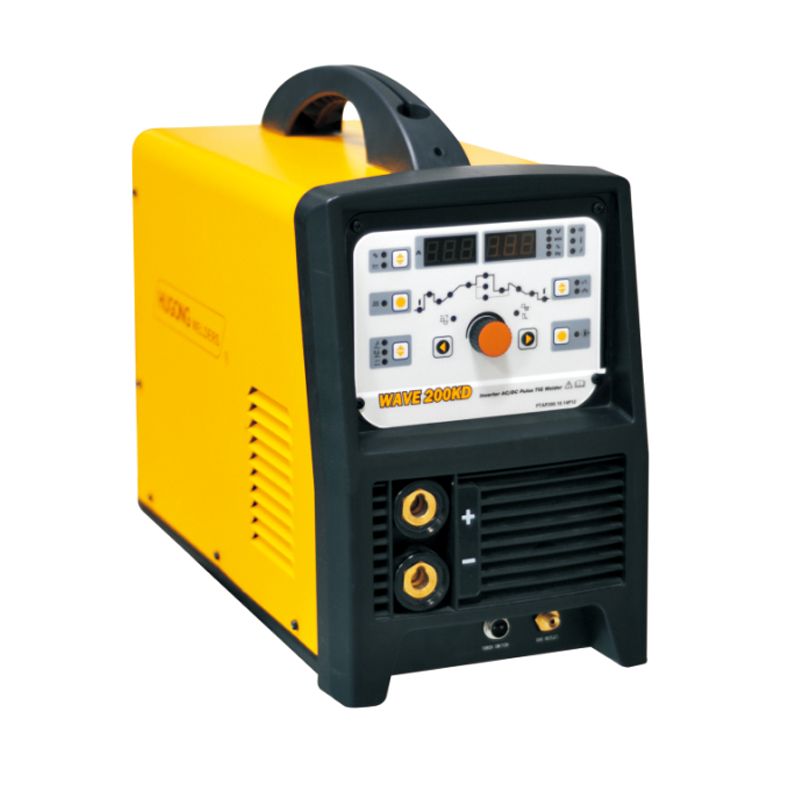

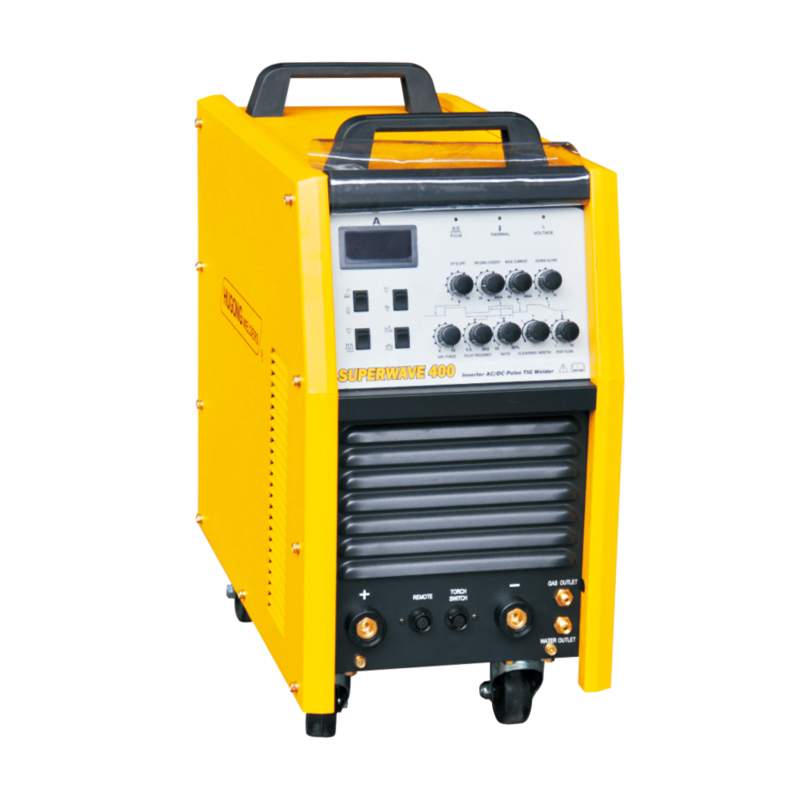

Model Wave 200KD Superwave 4001
Power Supply (V) 230 380
Rated Input Current (A) 36 27.8
Rated Input Capacity (KVA) 6.7 18.3
No-load Voltage (V) 65 75
TIG Current Range (A) 5-200 DC Tig
10-200 AC Tig
5-400 DC Tig
10-400 AC Tig
MMA Current Range (A) 10-200 20-400
Rated Output (A) 35%@200 35%@200
Tungsten Diameter (mm) 1.6-4.0 1.6-4.0
Electrode Diameter (mm) 1.6-4.0 1.6-4.0
Weight (Kg) 19.5 60
Packing Size (mm) 570x320x600 690x430x810
