Description

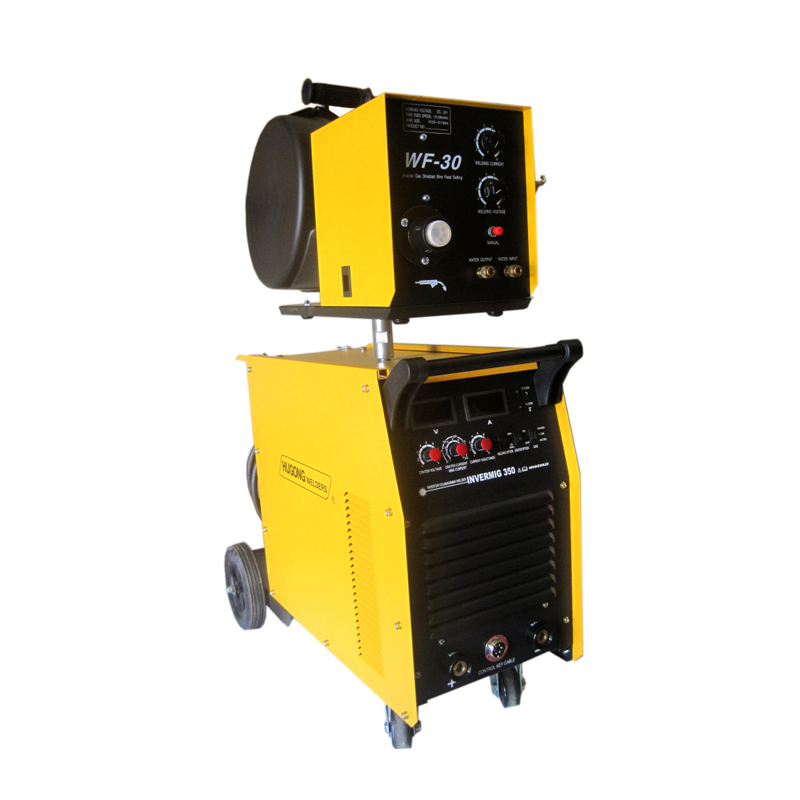

  • IGBT inverter three phase separate wire feeder MIG/STICK welder
  • Power indicator
  • Thermal protection
  • Digital display
  • Stepless heat and wire speed setting
  • Four roller
  • Manual wire feeding
  • Burn back
  • Gas check
  • Crater A/V adjustment
  • Available for 15kgs or 20kgs wire spool



Accessories

  • MIG Torch 1 piece
  • Earth cable and earth clamp 1 piece
  • Connector cable 1 piece
  • Control cable 1 piece
  • Gas hose with hose clamp 1 piece
  • Other(contact tips, spanner, connector and hoop etc) 1 piece



Optional Accessories

  • Regulator
  • Water tank
Model Invermig-350 Invermig-500
Power Supply (V) 380 380
Rated Input Current (A) 25.5 41.8
Rated Input Capacity (KVA) 16.8 27.5
No-load Voltage (V) 60 68
Rated Output (A) 60%@350 60%@500
Weldable Al Wire (mm) 0.9-1.2 0.9-1.6
Weldable Fe, Ss Wire (mm) 0.8-1.2 1.0-1.6
Protection Class IP 23 IP 23
Power Factor 0.93 0.93
Weight (Kg) 45 50
Packing Size (mm) 1035x430x955 1035x430x955
