Description

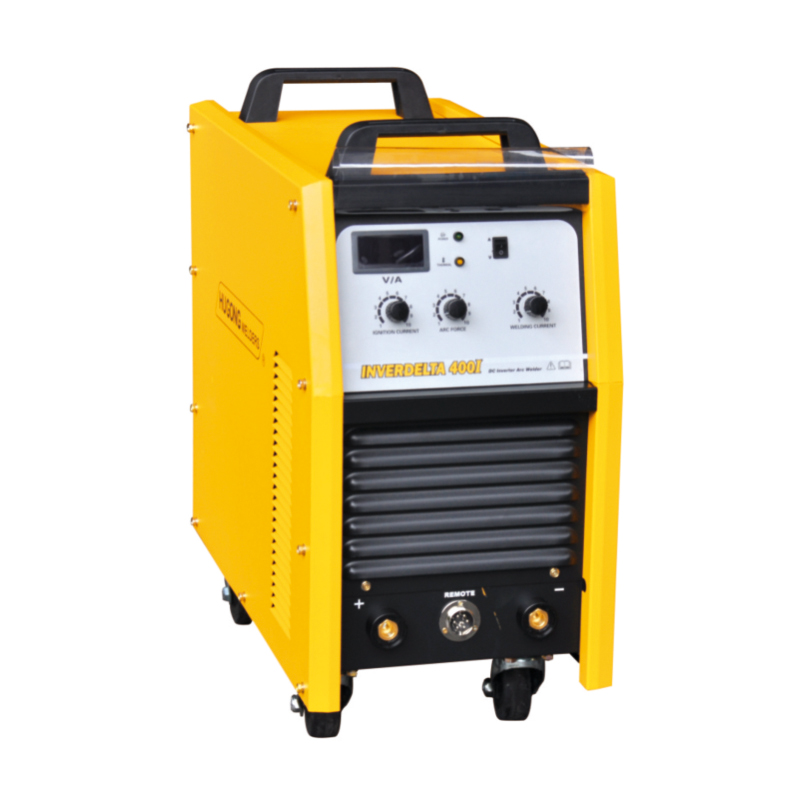

- Semi-professional IGBT inverter stick welder
- Power indicator
- Thermal protection
- Digital display
- Stepless current setting
- Current preset
- Hot start
- Arc force adjustable
- Accept +/-20% voltage fluctuation
- Lift arc TIG
- Available for rutile and basic electrode
Accessories
- Welding cable with electrode holder 1 piece
- Earth cable with earth clamp 1 piece
Optional Accessories
- Protective mask
- Hammer/brush
- Electrode
- TIG torch
- Remote control
| Model | Inverdelta-4001 | Inverdelta-500I |
| Power Supply (V) | 380 | 380 |
| Rated Input Current (A) | 28 | 41 |
| Rated Input Capacity (KVA) | 18.4 | 27 |
| No-load Voltage (V) | 76 | 76 |
| Welding Current Adjusment Range (A) | 25-400 | 25-500 |
| Rated Output (A) | 60%@400 | 60%@500 |
| Electrode Diameter (mm) | 1.6-8.0 | 1.6-8.0 |
| Tungsten Diameter (mm) | 1.0-4.0 | 1.0-4.0 |
| Technology | IGBT | IGBT |
| Protection Class | IP 23 | IP 23 |
| Weight (Kg) | 45 | 50 |
| Packing Size (mm) | 690x430x810 | 690x430x810 |
