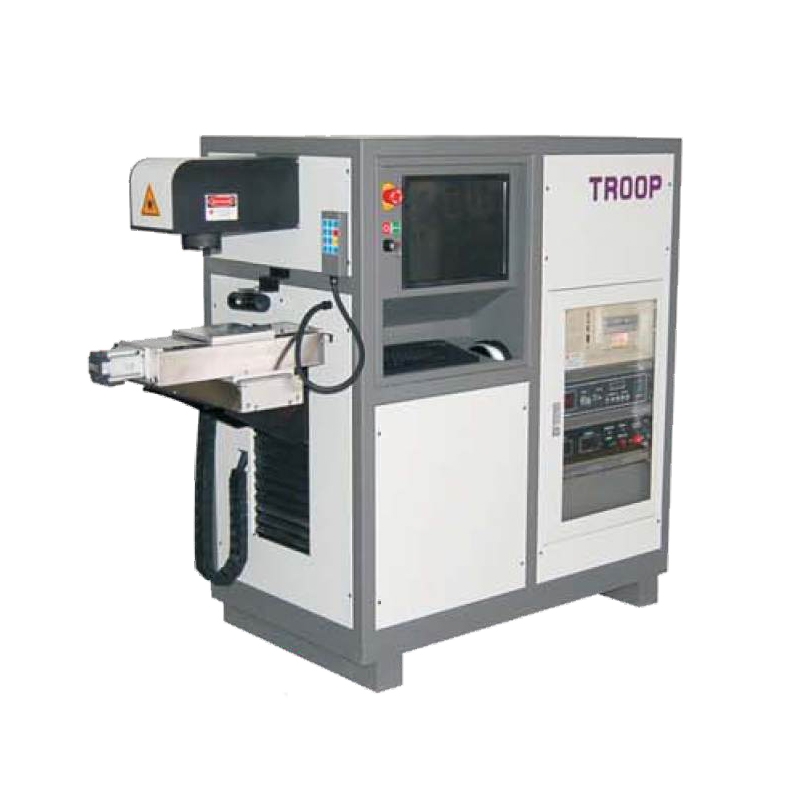

Compact Welding System PRO-W integrates high quality 30W-3000W YAG fiber coupled lasers from our Japanese partner into our 3-Axis cartesian co-ordinate systems. With our flexible numerical control system, users can easily calibrate pulse width, laser energy, peak value and repeatability of the laser for cutting or welding for various material.
Features :
– Deformation and HAZ are minimized thanks to very small spot size, high energy density and short welding time;
– Deformation and damage are minimized thanks to non-contact processing without mechanical pressure;
– Non-contact processing makes the maintenance work easy;
– There is no need to consider electrical conductivity and conductive routing;
– Welding can be performed in the atmosphere, in an assist gas atmosphere or in vacuum;
– According to applications, the location of work piece and the laser irradiation point can be moved;
– Multi-spot simultaneous welding and time-sharing welding are utilized;
– Flexibility to incorporate automation and facilitates downsizing and cost reduction.
Model | PRO-M5OZD | |
Power | W | 50 |
Wavelength | pm | 1.06 (YAG) |
Marking Area | mm | 400×200 |
Speed | mm/s | < 7000 |
Depth | mm | > 0.1 |
Accuracy | mm | ±0.012/300 |
Repeatability | mm | ±0.003 |
Rotational Accuracy | ±37360° | |
Graphics Interface | DXF, PLT | |
Control Unit | Industrial computer + Galvanometer | |
Ventilation System | W | 370 |
Electrical | 220V/20A | |
Cooling | W | > 3000 |
Dimension | mm | 1400x650x1200 |
