Description

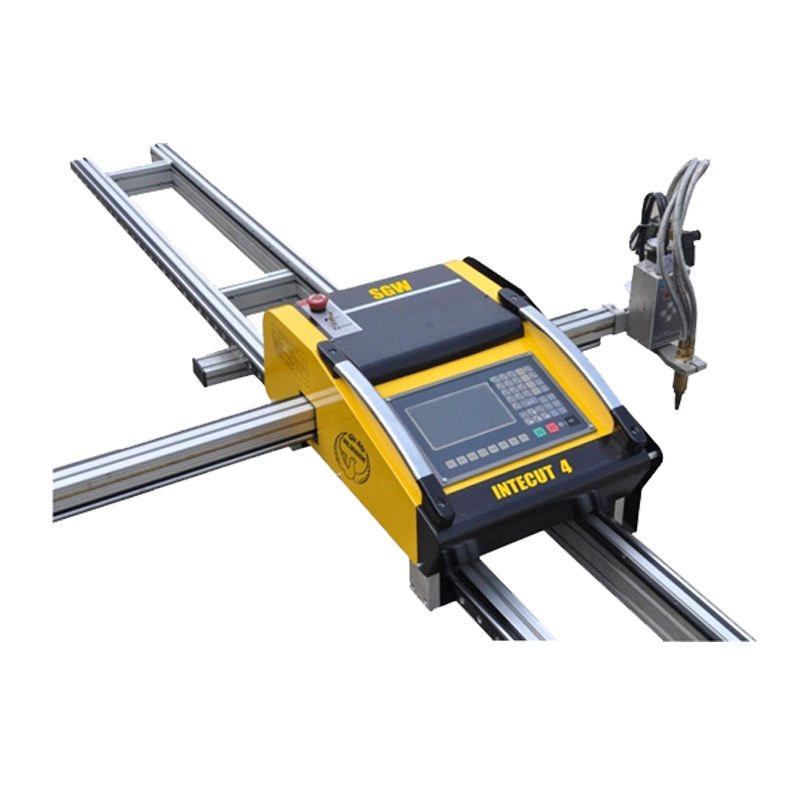

- INTECUT is strong alloy structure to achieve portable and reliable purpose
- Installation can be finished in 30 minutes
- CNC is with 7” colorful displayer and interfaces,English,Russian,Spanish,Portuguese,French,Danish,Korean,Chinese,Thai language.
- 44 shapes in CNC library. It is easy for user to choose and set parameters.
- Functions for both flame cutting and plasma cutting.
- Program are built in for improving cutting quality, includes speed, pierce time,pulse,motions,etc.
- Easy exchanging between flame and plasma cutting model
- USB port for inputting and outputting drawings
- Compatible for nesting software, FastCAM,MTC,Turbonest,etc. Drawings from AUTOCAD,TEKLA and SOLIDWORKS are easily used
| Model | Intecut 3 | Intecut 4 | Intecut 5 |
| Input Voltage | 220V (Customised voltage is available) | ||
| Frequency | 50 or 60Hz | ||
| Input Power | 180W | ||
| Monitor | LCD 5.7″ with keyboard | ||
| Effective Cutting Size | 1220×2000 | 1220×3400 | 1500×3400 |
| Moving Speed | Idle speed : 0-6000mm/min | ||
| Flame Cutting Speed | Cutting speed : 6-750mm/min | ||
| Transverse Arm | 2000mm | 2000mm | 2300mm |
| Rail Length | 2500mm | 4000mm | 4000mm |
| Total Weight | 100kg | 120kg | 130kg |
| Cutting Mode | Flame/Plasma | ||
| Cutting Gas | Acetylene, Propane, Methane, LPG | ||
