Description
- Portable Inverter stick welder
- Power Indicator
- Thermal Protection
- Hot Start
- Available for rutile and basic electrode
- High Frequency Inverter technology make it light weight and energy saving
- The Advantage of lightweight and small volume makes it very suitable for the movable position jobs.
- Compact design and minimal weight, ideally use for small and medium workshop, site environment, etc.
- Digital display for welding current
Accessories
- Welding cable with electrode holder 1 piece
- Earth cable with earth clamp 1 piece
Optional Accessories
- Protective mask
- Hammer/brush
- Electrode
- BMC case
- Belt

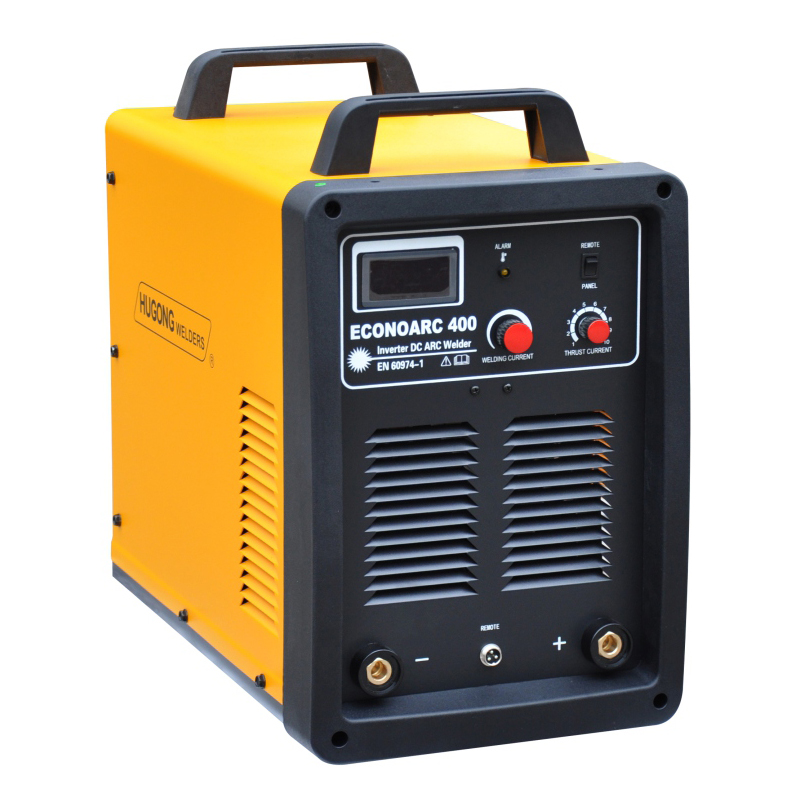

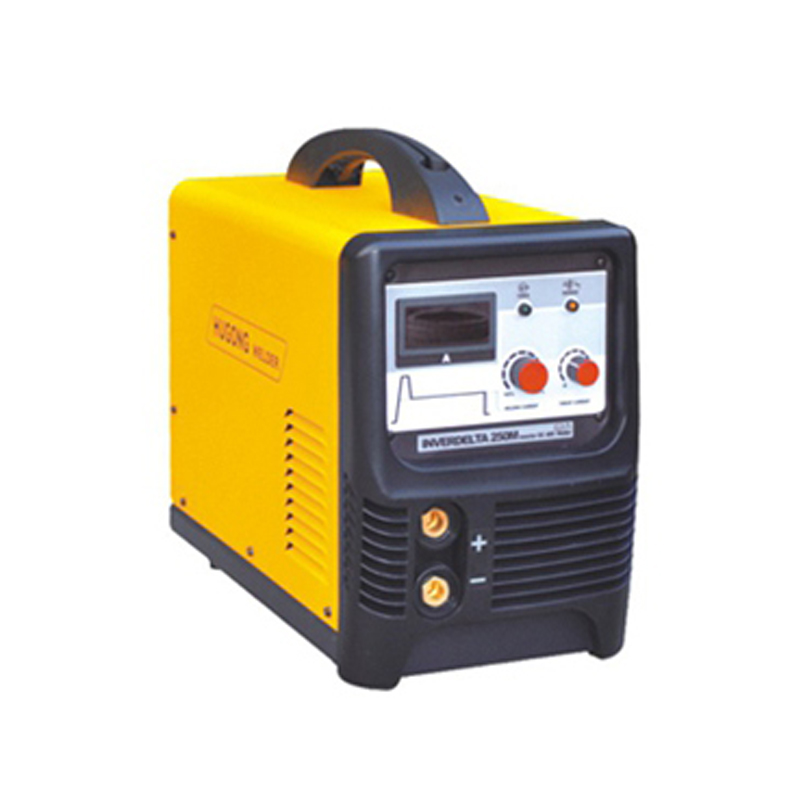

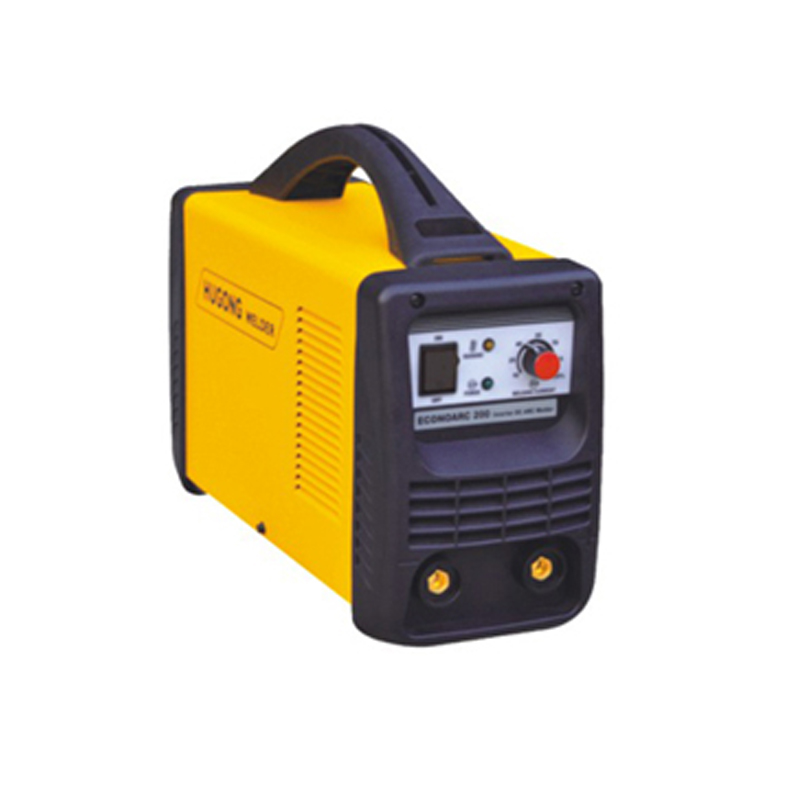

| Model | Econoarc-200 | Econoarc-250 | Econoarc-400 |
| Power Supply (V) | 230 | 380 | 380 |
| Rated Input Current (A) | 31. | 14 | 24.4 |
| No-load Voltage (V) | 65 | 60 | 65 |
| Output Range (A) | 20-180 | 20-210 | 30-350 |
| Rated Output (A) | 60%@180 | 60%@210 | 60%@350 |
| Electrode Diameter (mm) | 1.6-3.2 | 1.6-5.0 | 1.6-5.0 |
| Tungsten Diameter (mm) | 1.0-2.4 | 1.0-3.2 | 1.0-4.0 |
| Technology | Mosfet | Mosfet | Mosfet |
| Protection Class | IP 23 | IP 23 | IP 23 |
| Weight (Kg) | 8 | 19 | 27.5 |
| Packing Size (mm) | 460x270x345 | 570x320x440 | 650x400x570 |
