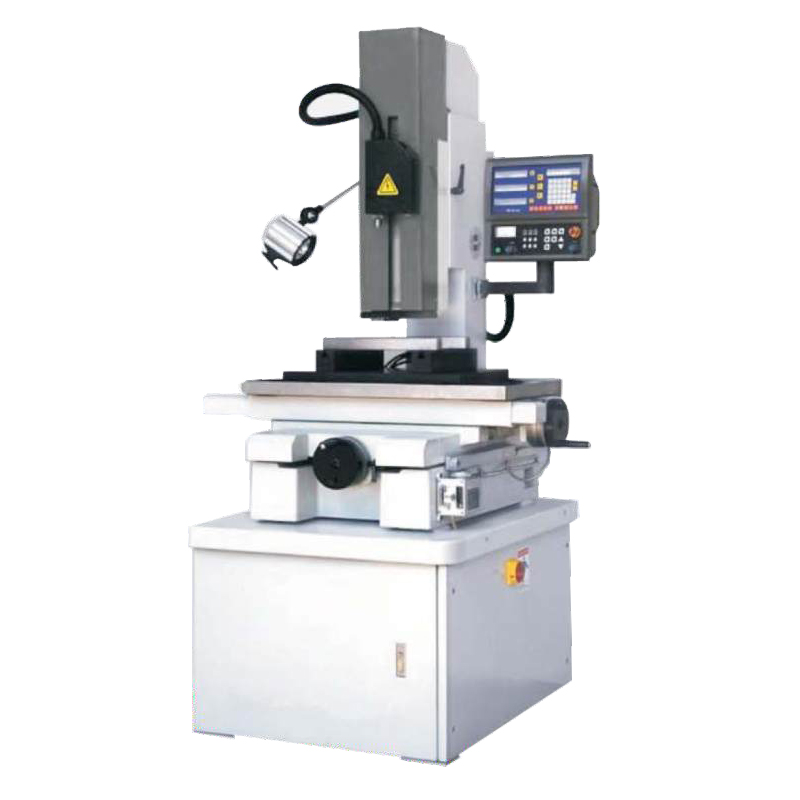

Drilling EDM Troop AT-Series Drilling EDM Machine is a production equipment designed for to bore holes with through 300 mm of soft or through hardened steel in less than 10 seconds, averaging 50% to 80% wear rate. Holes of 0.3 mm to 3.0 mm can be achieved in an efficient and automated process. Our 3-Axes system is particularly simple and easy to operate, making it possible to program a series of drilling within a few minutes of setup. By incorporating the Troop Drilling EDM equipment with a varied assortment of technologies, it gives tooling workshops the opportunity for wide diversification of services offered to customers.

Categories: ,

Features:

  • High precision movement by linear router guides of Z axis
  • Granite worktable with 3 axis digital readout
  • Process deep holes with diameter from (D0.2 —3.0 mm rapidly)
  • X,Y axis ball screw, stable and long life, transmission system
  • Integrated coolant system
Model AT-703A AT-703B
Worktable Dimension mm 550×360 700×400
Travel X x Y x Z mm 350x250x(380+300) 500x400x(380+300)
Max Load on Work Table kg 350 500
Max Pressure of Working Water kg/cm² 140 140
Flume Dimension mm 800×450 1100×600
Electrode Diameter mm 00.15 – 03
Max Process Deep mm 400
Max Diameter to Deep Ratio 300
Machine External Domensions mm 1000x750x2000 1200x900x2100
Machine Weight kg 920 1200
Max Work Current A 30 30
Workpiece Material Steel/Alumunium/Copper/Various of Conductors
Working Medium Water
Max processing Speed mm/min 30 – 60 (Ф1.0)
Function ZNC/CNC optional
