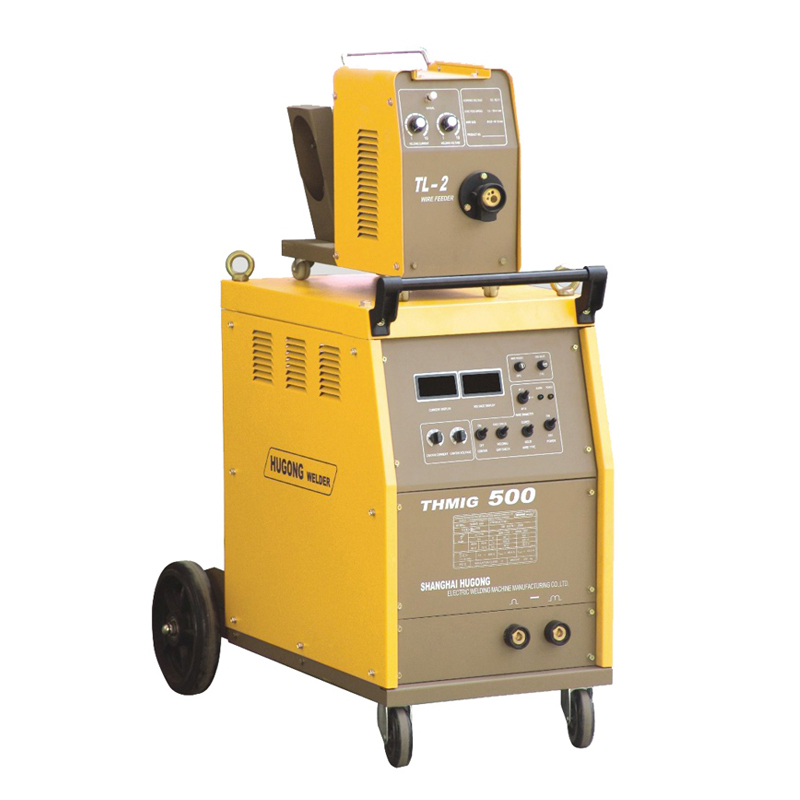

Description

  • Professional three phase separate wire
  • Feeder MIG welder
  • Power indicator
  • Thermal protection
  • Digital display
  • Stepless heat and wire speed setting
  • 2T/4T
  • Burn back time adjustment
  • Gas check
  • Gas pre/post-flow
  • Undercut
  • Voltage compensation
  • Available for 15kgs or 20kgs wire spool



Accessories

  • MIG Torch 1 piece
  • Earth cable and earth clamp 1 piece
  • Connector cable 1 piece
  • Control cable 1 piece
  • Gas hose with hose clamp 1 piece
  • Other(contact tips, spanner, connector and hoop etc) 1 piece



Optional Accessories

  • Regulator
  • Water tank
Model THMIG-350 Separate THMIG-500 Separate
Power Supply (V) 400 400
Rated Input Current (A) 27.5 48.4
Rated Input Capacity (KVA) 18.1 31.9
Output Open Circuit Voltage (V) 52 66
Welding Current Range (A) 60-350 60-500
Rated Output (A) 50%@350 60%@500
Weldable Al Wire (mm) 0.9-1.2 1.0-1.6
Weldable Fe, Ss Wire (mm) 0.6-1.2 0.9-1.6
Protection Class IP 21 IP 21
Power Factor 0.96 0.96
Weight (Kg) 140 190
Packing Size (mm) 1015x540x840 1015x634x840
