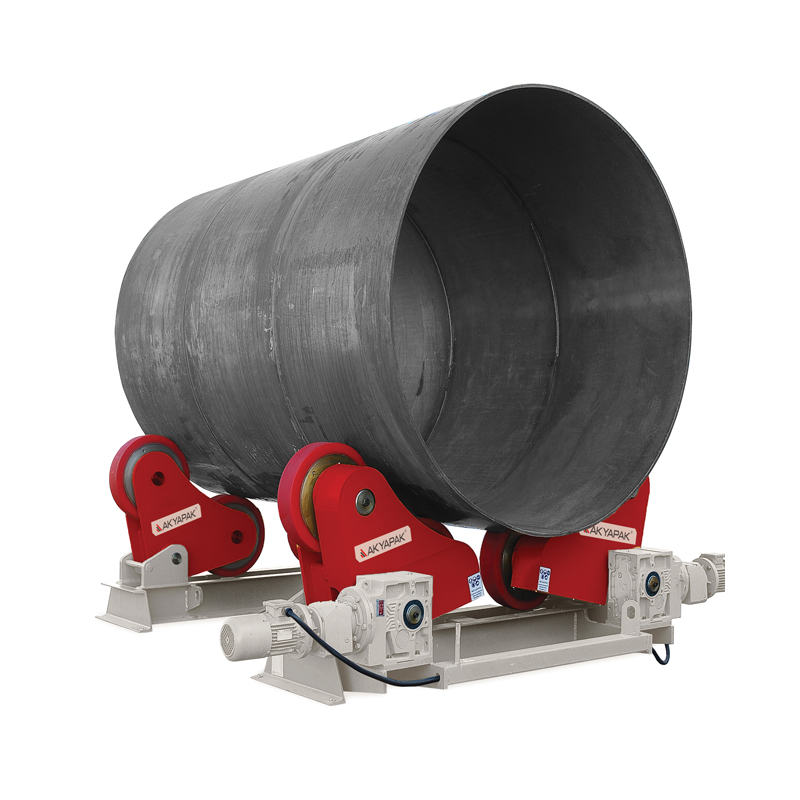

Self-aligning rotators are an ideal solution for conditions where diameter of the rotated work pieces is variable. Used for rotating circular parts such as tanks, pressurized containers, tower piping, boiler, silos, reactors, fuel drums etc. These rotators are able to adjust wide diameter ranges automatically. No additional time or effort is required to commence rotation of the work piece. Rotators improve the speed and efficiency both during automatic and manual welding and have an important role in steel construction workshops by minimizing crane operation. Operators can rotate the pieces mounted on the rotator clockwise or counterclockwise, precisely, well-aligned and controllable via control panel, in easily adjustable speeds. Self aligning rotators comprise of two units as 1 drive and 1 idler unit. Number of drive and idle units can be changed according to the application conditions. Akyapak Makine includes 3 to 300 tons self aligning rotators in its standard lists. However, custom production can be realized up to 600 tons.

Categories: ,

STANDARD FEATURES

  • “PU” wheels absorbing shocks and vibrations
  • Automatic diameter adjustments
  • Adjustable rotating speed
  • Remote controller with 5 meter cable length
  • Digital speed indicator on the controller panel for monitoring rotation
  • Belt driven clutch system for high tonnage pieces
  • Motors with brake & forced fan cooling





OPTIONAL FEATURES

  • Custom wheel designs for areas that require high temperature
  • Support group which prevents axial movement of the parts
  • Earthing Brush System
  • Hydraulic tip adjustment system (fit-up)
  • Carriage System for Transport
  • Synchronous operation with column & boom systems
Model Data Capacity (tons) Load Capacity per Section (tons) Minimum Diameter (mm) d Maximum Diameter (mm) D2 Roller Diameter (mm) Roller Width (mm) Roller Meterid Overall Length Drive (mm) L1 Overall Width Drive (mm) W1 Overall Length Drive (mm) L2 Overall Width Drive (mm) W2 Height Over Rollers (mm) H Weight (kg)
SAR – 3 3 1.5 320 2700 254 76 Poliuretan 1110 215 1335 430 685 575
SAR – 5 5 2.5 420 3200 254 76 Poliuretan 1260 215 1485 430 685 750
SAR – 20 20 10 500 4600 381 102 Poliuretan 2050 660 2515 793 946 2050
SAR – 40 40 20 450 5200 457 127 Poliuretan 2200 640 2460 850 1000 2370
