Description

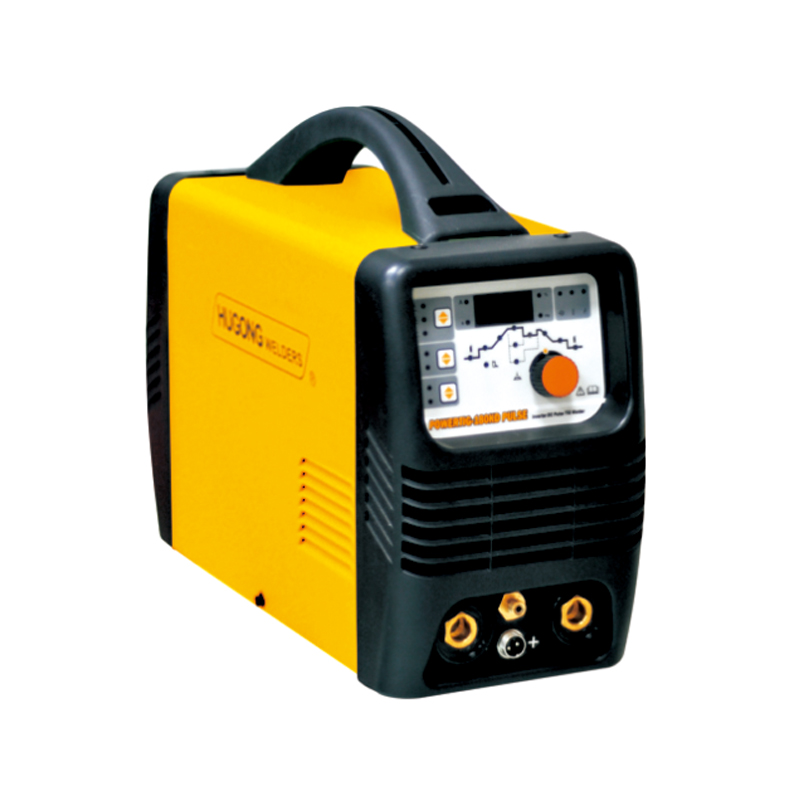

  • Portable IGBT inverter DC HF TIG/MMA welder
  • Power Indicator
  • Thermal protection
  • Stepless current setting
  • In MMA mode
  • Arc force
  • Anti-sticking
  • Hot start
  • Available for rutile and basic electrode



Accessories

  • TIG torch 1 piece
  • Earth cable with earth clamp 1 piece
  • Gas hose with hoop and connector 1 piece
  • Accessories for TIG torch 1 piece



Optional Accessories

  • Welding cable with electrode holder
  • Regulator
Model Power Tig 200 K Power Tig 200 KD Pulse
Power Supply (V) 230 230
Rated Input Current (A) 26 39
No-load Voltage (V) 66 66
TIG Current Range (A) 15-200 5-200
MMA Current Range (A) 15-180 20-200
Rated Output (A) 60%©200 60%©200
Tungsten Diameter (mm) 1.0-4.0 1.0-4.0
Electrode Diameter (mm) 1.6-4.0 1.6-4.0
Protection Class IP 21 IP 21
Weight (Kg) 6.8 8.5
Packing Size (mm) 415x240x375 480x240x480
