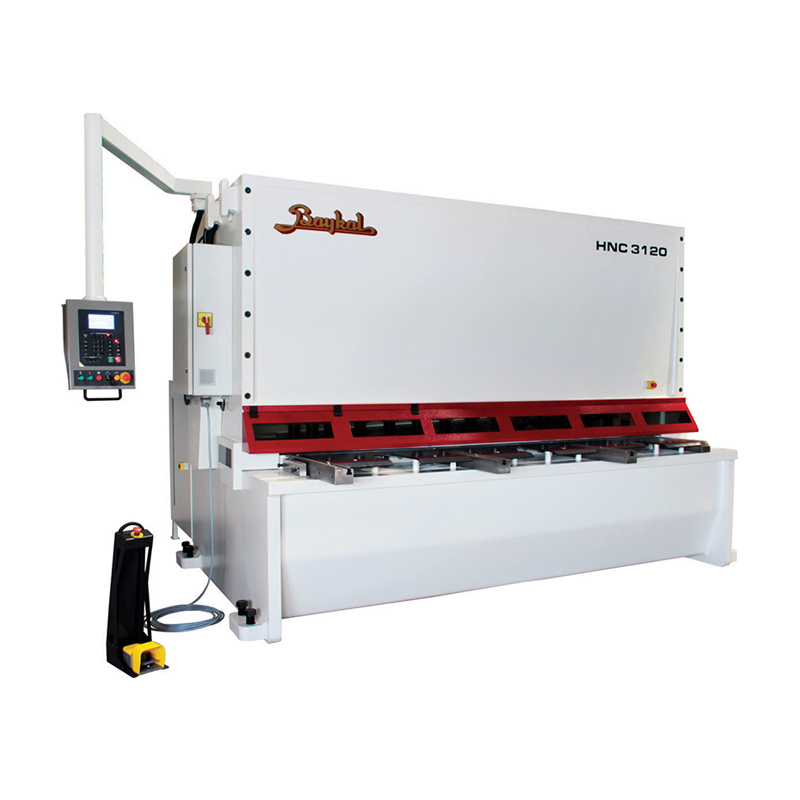

Benefits at a glance

• Rigidly welded all-steel frame construction.
• Design with “variable-rake” concept.
• Adjustment of machine functions with easy-to-use digital control units.
• Extra deep (350 mm) side frame throat gaps allowing continuous strip slitting.
• Backgauge system with ballscrews.
• Backgauge retract function.
• Adjustable stroke length to increase number of strokes on shorter cuts.
• Compact, low-maintenance European hydraulics.
• Hydraulic holddown system.
• Hydraulic overload protection.
• Centralised manual lubrication system.

Standard Equipment

• Shear blades from tough and wear-resistant alloyed material:
• Top blade : Two cutting edges.
• Bottom blade : Four cutting edges.
• Digital control unit for backgauge positioning, rake adjustment, and blade gap setting.
• Foot pedal control for single and repetitive cutting cycles.
• 1000 mm power backgauge with ballscrew spindles to 0.1 mm precision.
• 1000 mm squaring arm with scale, T-slot and flip-stop.
• Front support arms in 1000 mm length.
• Digital stroke counter.
• Pendant arm.
• Work table with filler plates, ball transfers and hand slots.
• Emergency stop buttons on the pendant and on the mainframe.
• Shadow line facility with fluorescent lighting.
• See through” finger guard and side throat guards.

Optional Equipment

• Multi-function electronic control units.
• Siemens OP7 S7-200.
• Cybelec DNC 60.
• Servo driven backgauge movement Automatic “swing-up” backgauge mechanism for shearing longer pieces than maximum backgauge length.
• Pneumatic rear support systems for thin sheets.
• Anti-twist system.
• Front and rear sheet conveyor and stacking systems.
• Oil cooling or heating equipment.
• Throat gap deeper than standard.
• Squaring arm and front arm length other than standard.
• T-slotted front support arms with scale and flip-stop.
• Angle gauge.
• 1000 mm lift-up front finger guard with electrically interlocked safety switch.
• Holddown pads.
• Rear safety guarding.
• Conformity to European Community CE norms.
