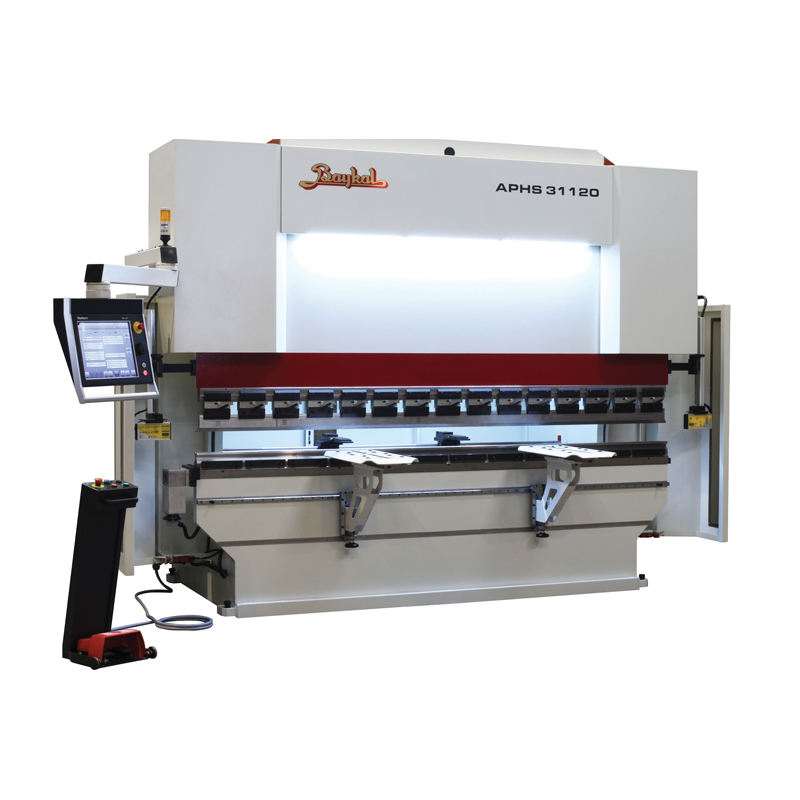

APHS, which is designed with a superior experience of Baykal Machinery for 20 years in press brake manufacturing, will be the most important profit factor of your company. It minimizes your unit time costs with its speedy, sensitive, quality and superior bending ability. Thanks to its monoblock welded body structure with static and dynamic rigidity, it provides a long operating life. APHS press brake converts your most sensitive works into perfect with reliable processes.

Benefits at a glance

  • Rigidly welded, monoblock steel frame for minimum deflection under load.
  • Downstroking bending beam with two cylinders made from high-quality forged steel and precisely honed.
  • Ram travel fully supported in low friction fiber slideways.
  • Full electronic synchronisation with proportional valve technology assuring maximum bend accuracy and repeatability through constant monitoring and correction of beam parallelism by a CNC system.
  • Stroke-depth measurement through high-precision linear scales.
  • CNC-controlled backgauge on ballscrew spindles with DC drive.
  • Block-type European hydraulics.
  • Compactly-wired electrical box with ventilation.
  • Full conformity with EC Machinery Directive for safety and certified CE marking.



CNC System

  • Graphical control with full programming and machine control facilities in a user-friendly computer environment. Main features include:
  • Programmable multi-axis control.
  • Y1-Y2 cylinder axes.
  • X1-X2-R1-R2-Z1-Z2 backgauge axes.
  • CNC crowning axis.
  • Modular expansion for additional axes.
  • High memory capacity for program steps and tooling data .
  • High number of product and bend repeat possibility .
  • Direct graphical programming with automatic computation of all axis positions and bend sequence in full graphic simulation .
  • Product programming with direct angle input or in absolute dimensions. For each CNC program and bend sequence, the programmable and/or computed functions include: bending length/thickness, material selection, tooling selection, bend method, mute position, pinching point, pres force/speed, incremental travel and retraction of backgauge,dwell time, delay time for axes re-positioning, decompression stroke/speed, tilt adjustment, cgorrections on Y and X axes.
  • Manual operation of all axes.
  • Teach-in on all axes.
  • Operator selectable languages.
  • Integrated diagnostic software.
  • Memory storage on USB flashdisk.





Accessories

Standard:

European-style top tool holders with wedges.

Sectioned (gooseneck) punch and multi-vee die block. (all tooling precisely ground)

Two-hand operation console with double foot-switch.

Linear front-arm guides.

Electrically-interlocked side and rear guards.



Optional:

Manual or power-driven (CNC) crowning tables.

Top tool manual quick-release clamps.

Hydraulic tool clamping systems.

Special tooling for customer applications:

Special-profile top and bottom tools.

Single-vee dies with table adapters.

Front light guards or front laser protection for enhanced safety .

Model Thickness Capacity Bending Lenght Motor Output Oil Tank Volume Speeds (mm/s) Approx. Weight Inside Frames Side Frame Width Bed Height Pit Depth Machine Height Daylight Opening Stroke Table Width Throat Gap
Approach Working Return
Ton mm kW Lt Ton mm mm mm mm mm mm mm mm mm mm
APHS 125040 40 1250 4 80 160 10 130 3.3 1070 1470 800 2250 455 215 60 410
APHS 21060 60 2100 5.5 140 150 10 130 5.4 1600 1580 880 2542 475 210 60 410
APHS 26090 90 2600 7.5 140 150 10 130 7.1 2050 1580 880 2605 540 260 60 410
APHS 31090 90 3100 7.5 140 160 10 130 7.9 2550 1590 880 2605 530 260 60 410
APHS 31120 120 3100 11 140 160 10 130 8.4 2550 1590 880 2905 540 260 60 410
APHS 31160 160 3100 15 210 160 10 130 9.7 2550 1600 880 2905 540 260 60 410
APHS 31200 200 3100 18.5 210 150 10 130 10 2550 1600 880 2905 530 260 90 410
APHS 31240 240 3100 22 210 130 10 120 11 2550 1610 880 2905 530 260 90 410
APHS 31300 300 3100 22 280 110 8 100 15 2550 1815 905 3150 660 320 380 500
APHS 31440 440 3100 30 450 80 8 70 22 2550 2060 1005 3400 575 320 450 500
APHS 41160 160 4100 15 210 170 10 120 12 3550 1600 880 2905 530 260 60 410
APHS 41200 200 4100 18.5 210 160 10 110 12.5 3550 1600 880 2905 530 260 90 410
APHS 41240 240 4100 22 210 150 10 100 14 3550 1610 880 2905 530 260 90 410
APHS 41300 300 4100 22 280 120 8 90 18.5 3550 1820 980 3200 635 320 280 500
APHS 41440 440 4100 30 450 80 8 70 26 3550 2235 955 3350 590 320 380 500
APHS 61240 240 6100 22 300 140 10 100 25 5100 1960 1100 3000 500 260 90 500
APHS 61300 300 6100 22 300 120 8 70 30 5100 2060 1115 3280 560 320 200 500
APHS 61380 380 6100 30 450 90 8 70 35 5100 2210 1100 3255 570 320 240 500
APHS 61440 440 6100 30 450 90 8 70 39 5100 2250 1100 3700 570 320 280 500
APHS 61500 500 6100 30 450 80 8 70 48 5100 2350 815 250 800 3500 530 340 380 500
APHS 61600 600 6100 37 500 80 7 70 55 5100 2400 1050 370 1150 4100 620 360 380 500
APHS 61800 800 6100 45 700 70 6 60 70 5100 2800 1050 600 1200 4750 750 500 500 750
APHS 611000 1000 6100 55 860 70 6 60 80 5100 2900 800 700 1500 4900 750 500 500 750
APHS 811000 1000 8100 55 860 70 5 60 95 6050 3000 800 700 1900 5000 750 500 500 750
