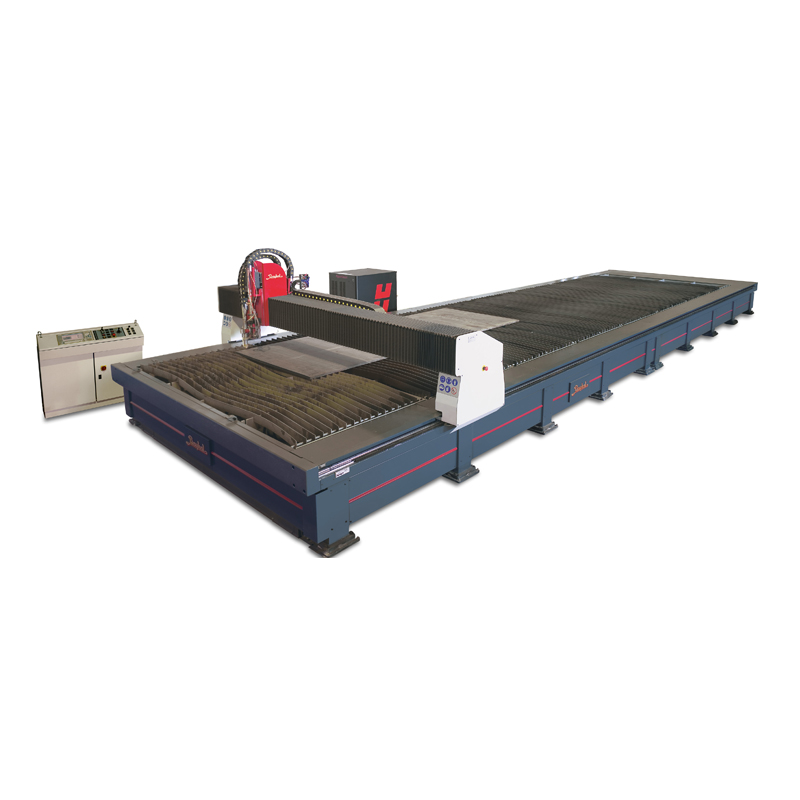

Do you want to minimize your business expenses? Then we are offering you Baykal plasma cutting machine. Baykal BPS is the model that provides top level sensitivity amongst all series. It is designed for high sensitivity plasma cutting and it can be equipped with two plasmas, inclined cutting (bevel), marking, drill and screw-cutting heads. BPS plasma cutting machine provides profit to your company as of the first minute it is started to operate.

Benefits at a glance

  • High precision plasma cutting technology.
  • High mechanical accuracy to: ± O.1 mm
  • Axis positioning speed: 30 m/min
  • X and Yaxis travel on precision linear rail guides.
  • Torch-height travel with ballscrews on dual linear guides.
  • Fast and accurate positioning with AC brushless servo motors.
  • Y-axis: dual synchronised servo drives.
  • X-axis: single servo drive.
  • Cutting table independently constructed of bridge and machine frame to maintain positional accuracy under any table-load.
  • Patented crash protection on torch®.
  • Automatic torch height control.
  • Sectional cutting table with automatic fume extraction system.
  • Windows® based CNC unit.
  • Automatic nesting software.
  • Remote control option on large tables..
  • Optional dust and fume collector devices conforming to safety regulations.
  • Additional plasma or oxygen torch optionly kontrol opsiyonu.



True Hole Technology

  • Hypertherm’s patent-pending True Hole cutting technology for mild steel produces significantly better hole quality than what has been previously possible using plasma.
  • This is delivered automatically without operator intervention, to produce unmatched hole quality that surpasses the competition.
  • True Hole Technology requires a HyPerformance Plasma HPRXD® auto gas system along with a True Hole enabled cutting table, nesting software, CNC, and torch height control.
Model Cutting Table (mm) Width (A) (mm) Lenght
(B) (mm)
Height
(C) (mm)
Table Height
(D) (mm)
Table Width (mm) Table Length (mm) X Axis Stroke
(E) (mm)
Y Axis Stroke
(F) (mm)
Weight
(kg)
BPS1503_RO 1700×3200 3000 5200 1800 750 1700 3200 1700 3200 3000
BPS2003_RO 2200×3200 3500 5200 1800 750 2200 3200 2200 3200 4000
BPS2004_RO 2200×4800 3500 6200 1800 750 2200 4800 2200 4200 5000
BPS2006_RO 2200×6400 3500 8200 1800 750 2200 6400 2200 6200 7000
BPS2009_RO 2200×9600 3500 11200 1800 750 2200 9600 2200 9200 9000
BPS2010_RO 2200×11200 3500 12200 1800 750 2200 11200 2200 10200 10000
BPS2012_RO 2200×12800 3500 14200 1800 750 2200 12800 2200 12200 12000
BPS2014_RO 2200×14400 3500 16200 1800 750 2200 14400 2200 14200 14000
BPS2503_RO 2700×3200 4000 5200 1800 750 2700 3200 2700 3000 5000
BPS2504_RO 2700×4800 4000 6200 1800 750 2700 4800 2700 4200 6000
BPS2506_RO 2700×6400 4000 8200 1800 750 2700 6400 2700 6200 8000
BPS2508_RO 2700×8800 4000 10200 1800 750 2700 8000 2700 8200 8500
BPS2509_RO 2700×9600 4000 11200 1800 750 2700 9600 2700 9200 10000
BPS2510_RO 2700×11200 4000 12200 1800 750 2700 11200 2700 10200 11000
BPS2512_RO 2700×12800 4000 14200 1800 750 2700 12800 2700 12200 13000
BPS2514_RO 2700×14400 4000 16200 1800 750 2700 14400 2700 14200 15000
BPS3003_RO 3200×3200 4500 5200 1800 750 3200 3200 3200 3200 6000
BPS3004_RO 3200×4800 4500 6200 1800 750 3200 4800 3200 4200 7000
BPS3006_RO 3200×6400 4500 8200 1800 750 3200 6400 3200 6200 9000
BPS3009_RO 3200×9600 4500 11200 1800 750 3200 9600 3200 9200 11000
BPS3010_RO 3200×11200 4500 12200 1800 750 3200 11200 3200 10200 12000
BPS3012_RO 3200×12800 4500 14200 1800 750 3200 12800 3200 12200 14000
BPS3014_RO 3200×14400 4500 16200 1800 750 3200 14400 3200 14200 16000
BPS4003_RO 4200×3200 5500 5200 1800 750 4200 3200 4200 3200 8000
BPS4004_RO 4200×4800 5500 6200 1800 750 4200 4800 4200 4200 9000
BPS4006_RO 4200×6400 5500 8200 1800 750 4200 6400 4200 6200 11000
BPS4009_RO 4200×9600 5500 11200 1800 750 4200 9600 4200 9200 13000
BPS4010_RO 4200×11200 5500 12200 1800 750 4200 11200 4200 10200 14000
BPS4012_RO 4200×12800 5500 14200 1800 750 4200 12800 4200 12200 16000
BPS4014_RO 4200×14400 5500 16200 1800 750 4200 14400 4200 14200 18000
