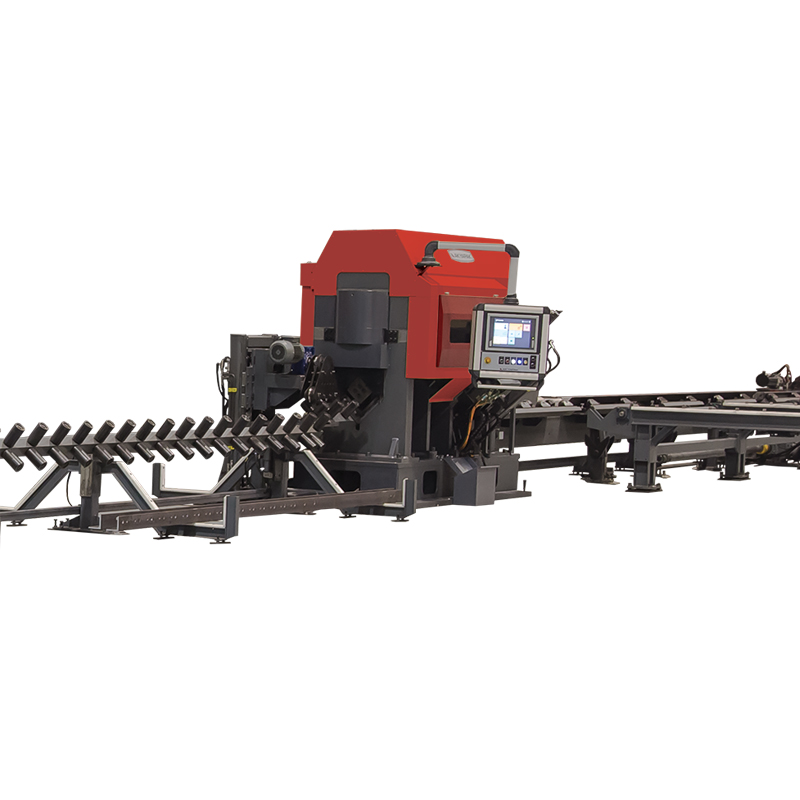

AKD Angle Punching, Shearing & Marking Line will save your time… Akyapak, AKD Angle Punching, Shearing & Marking Line, provides a new production solution for power plant or electrical poles, towers, oil refineries and all steel construction works that require quick but high quality operations without wastage. Designed to punch 40x40 - 160x160 L angle bars up to ø32 automatically and to cut them in programmed lengths with speed and high quality. 12 meter input and 12 meter output stands, pushing jaw enables to increase to efficiency and your works will be completed much more quickly. With AKD, having loading unit with capacity of 5 profiles, you will save your time.
Technical Details
- Punching Capacity: Angle Steel min:40x40x5 max.160x160x17 2 x Triple C-Frame Punching Unit 2 punch stations with 90 tons hydraulic cylinder each holds 3 quick punches
- Max.hydraulic operating pressure is 250 bar
- Max.diameter: ø32
- Max.thickness: 20mm Marking Systems: 1) Marking Cartridge 8 cassettes / 8 character
- Angle Shear : 280 tons hydraulic cylinder
- Max.Hydraulic operating pressure: 250 bar Shearing Capacity: Angle Steel min:40x40x5 mm max.160x160x17 mm
| Model | AZD 160 |
| Control system | SIEMENS |
| Perforating Punch Number | |
| Hydraulic punch | 6 (3 Right – 3 Left) |
| Operating Capacity | |
| Punching punch | 785 kN (78,5t) |
| Max. diameter/thickness | Ø32 mm/16 mm |
| Profile Measurement Min/Max | 40x40x4 mm |
| 160x160x16 mm | |
| Profile Length Standard | 12.00 mm |
| Feeding Truck Speed | 15.000 mm/min |
| Length Cutting (Shears) | |
| Fast descent speed of the piston | 2.500 kN (250t) |
| Total power | 40x40x4 mm |
| 160x160x16 mm | |
| Marking Style | Single Drum System |
| Number of Characters | 40 (On a Single Drum) |
| Character Dimension HxWxD | 10x12x0.75 |
