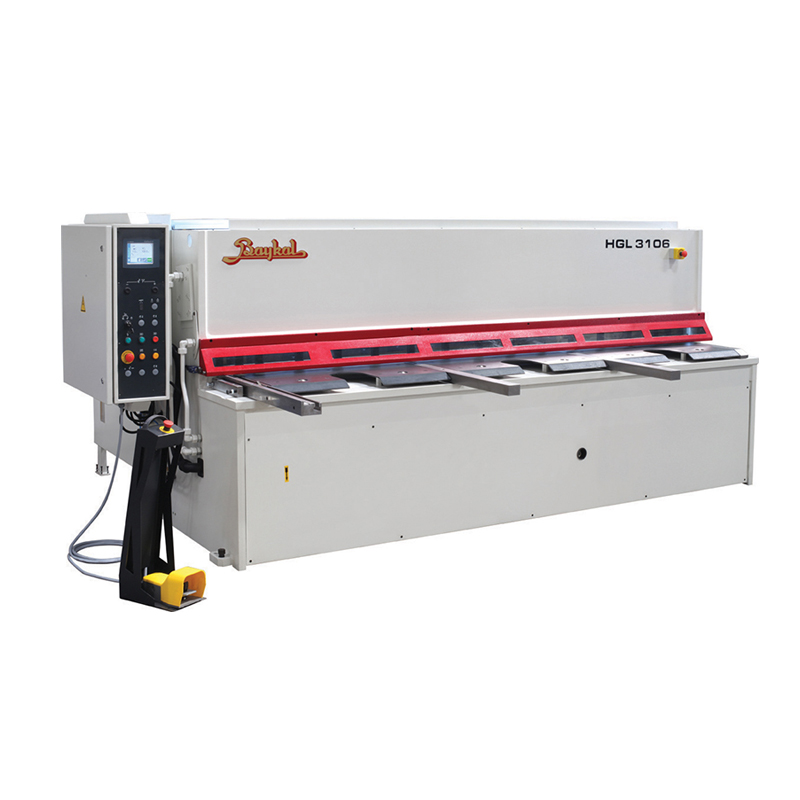

Thanks to its ergonomic design and long-life rigid structure, it provides dynamic and extremity sensitive prolificacy. It contributes to your budget with its low business investment. By preferring HGL upcut shears, you will make the best choice in its class with speed, performance and cutting sensitivity.

Benefits at a glance

  • Welded all steel frame providing maximum rigidity and cutting accuracy.
  • Swinging top beam working on high-precision and self-aligning roller bearings.
  • Top beam and work table of boxtype construction.
  • Rapid blade gap adjustment mechanism.
  • Swing-up backgauge system for shearing longer pieces than backgauge range.
  • Backgauge retract function.
  • Compact, low-maintenance hydraulic unit located underneath work table.
  • Hydraulic cylinders plainly designed and easily serviceable.
  • Hydraulic holddown system.
  • Hydraulic overload protection.
  • Fine-adjustment system for blades.
  • Adjustable stroke length to increase number of strokes on shorter cuts.



Standard Equipment

  • Shear blades made from tough and wear-resistant alloyed material Top blade : Two cutting edges.
  • Bottom blade : Four cutting edges.
  • 750 mm power backgauge with ballscrew spindles to 0.1 mm precision.
  • Backgauge digital readout control.
  • Digital stroke counter.
  • Foot pedal control for single and repetitive cutting cycles.
  • 1000 mm squaring arm with scale, T-slot and flip-stop.
  • Front support arms in 1000 mm length.
  • Work table with filler plates, ball transfers and hand slots.
  • Emergency stop buttons.
  • Shadow line facility with fluorescent lighting.
  • See through” finger guard.



Optional Equipment

  • Power blade gap adjustment with digital readout control.
  • Pneumatic rear support systems for thin sheets.
  • Backgauge length other than standard.
  • T-slotted front support arms with scale and flip-stop.
  • Squaring arm and front arm length other than standard.
  • Angle gauge.
  • 1000 mm lift-up front finger guard with electrically interlocked safety switch.
  • Holddown pads.
  • Rear safety guarding.
  • Conformity to European Community CE norms.
Model Thickness
Capacity
Cutting Lengh Rake Angle Motor Power Number of Holddowns Stroke per Minute Capacity of oil tank Back Gauge Range Back Gauge Motor Approx. Weight
<450 N/mrif <700 NI/rnm2
mm mm mm degree kW pcs cuts/min. Lt. mm kW ton
HGL 2606 6 4 2560 1.6° 11 15 24 160 750 0.37 4700
HGL 3106 6 4 3060 1.6° 11 17 20 160 750 0.37 5500
HGL 3108 8 5 3060 1.6° 15 17 13 160 750 0.37 6450
HGL 3706 6 4 3660 1.6° 11 20 18 160 750 0.37 7300
HGL 4106 6 4 4060 1.6° 11 23 12 160 750 0.37 9400
