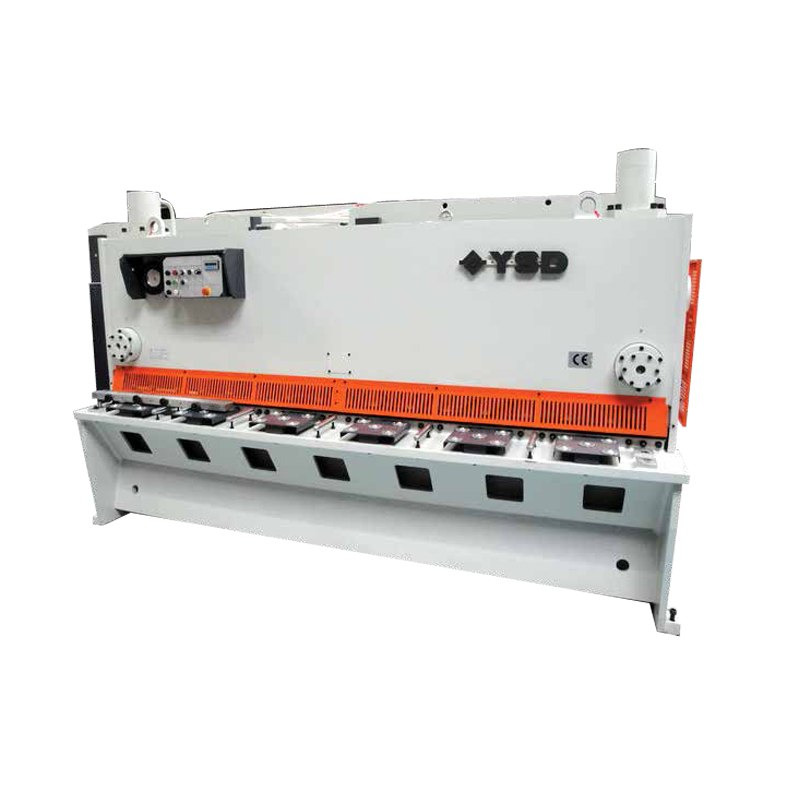

HGN (K) series power squaring shear machine adopts an optimized frame designed by UG-software. The wholly welded structure shows good strength and rigidity. Stable integrated hydraulic system contributes to safe and reliable operation. This type of shearing machines allows for blades gap and shearing angle adjustment, which is a key point to get desired products.
Characteristics
- HGN (K) series hydraulic guillotine features in a unique turret structure of three idler rollers guiding the rail. The former pre-pressing lead rail makes the turret be tightly between the upper rail and the lower rail and continually repeat reciprocating action.
- These power squaring shear machines have the merits of integrated hydraulic system, with high quality hydraulic components and seals made by world-famous companies, so as to minimize hydraulic tubing to the least degree and ensure safe and reliable operation.
- Hydraulic components and seals are all in the sizes conforming to ISO and DIN standards.
- When cutting plates of different kinds and thicknesses, blades clearance can be easily adjusted through a blades gap quick adjustment device. In addition, blades gap value is shown on a dial plate.
- Shear angle adjustment is available so that material distortions could be minimized.
- Our hydraulic guillotines are equipped with a centralized button station, contributing to easy operation.
- This series power squaring shear machine is also characterized with brief appearance and great shape.
YSD is a supplier for all kinds of sheet metal forming machines in China. Our products meet with domestic certifications as well as world certifications. The hydraulic guillotine is made under ISO9001 standards. CAD/CAE/CAM/CAPP are adopted in designing and manufacturing power squaring shear machine by using EDS-UG software from USA. CE Norm machine for European market is available. CSA Norm machine for North America market is available.
| Model | HGO | HGN | |||||||
| 25/6 | 31/6.35 | 40/6.35 | 25/8 | 31/8 | 40/8 | 50/8 | 25/13 | 31/13 | |
| Mild steel thickness (45kg/mm2) (mm) | 6 | 6.35 | 6.35 | 8 | 8 | 8 | 8 | 13 | 13 |
| Stainless steel thickness (60kg/mm2) (mm) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 8 | 8 |
| Cutting lenght (mm) | 2500 | 3100 | 4000 | 2500 | 3100 | 4000 | 5000 | 2500 | 3100 |
| Max. Cutting force (ton) | 16.5 | 14.5 | 16.5 | 22 | 27.5 | 27.5 | 24.5 | 58 | 58 |
| Backgauge range (mm) | 750 | 750 | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 |
| Rake angel adjustment (deg) | 0.5-2.5 | 0.5-3 | 0.5-2.5 | 0.5-2.5 | 0.5-2.0 | 0.5-2.0 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Strokes per minute | 12 | 10 | 8 | 17 | 15 | 11 | 8 | 9 | 9 |
| Frame throat (mm) | * | * | * | 100 | 100 | 100 | 100 | 100 | 100 |
| Number of holddowns | 14 | 17 | 22 | 14 | 17 | 22 | 26 | 14 | 17 |
| Volume of oil tank (L) | 110 | 110 | 200 | 290 | 350 | 400 | 605 | 383 | 449 |
| Motor power (kw) | 7.5 | 7.5 | 11 | 11 | 11 | 15 | 18.5 | 15 | 15 |
| Approx. weight (kg) | 4700 | 5500 | 8000 | 6000 | 6500 | 10800 | 19000 | 7500 | 8700 |
| Lenght (mm) | 3445 | 4045 | 4995 | 3155 | 3755 | 4750 | 5885 | 3260 | 3860 |
| Width (mm) | 1629 | 1737 | 1862 | 1850 | 1850 | 1920 | 2170 | 2150 | 2150 |
| Height (mm) | 1615 | 1750 | 1900 | 2180 | 2180 | 2325 | 2520 | 2320 | 2320 |
