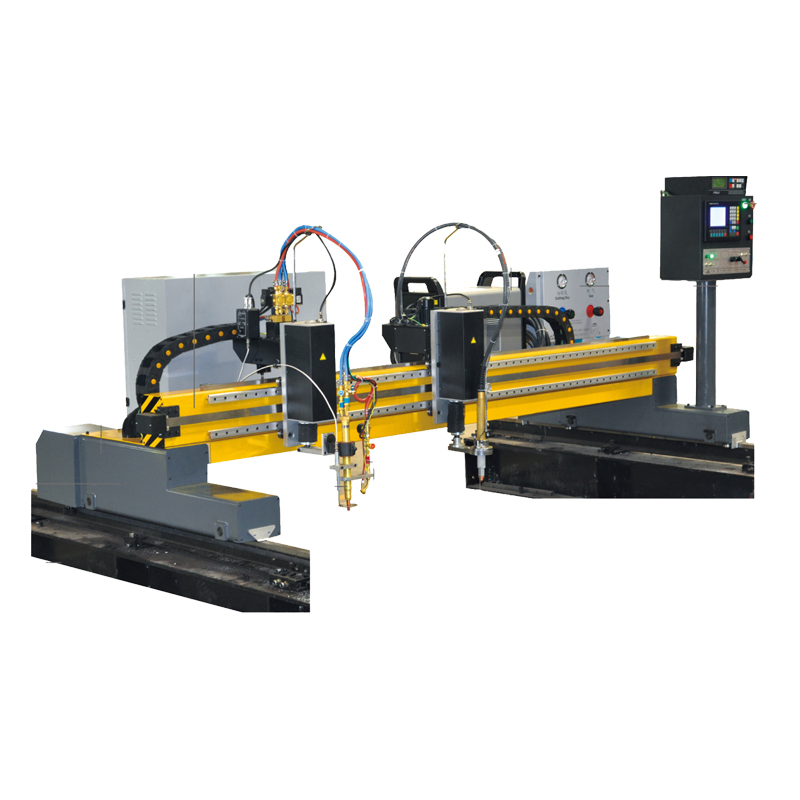

Description

  • A good choice metal plate cutting by flame and plasma.
  • Machine size is due to customer’s request on X and Y direction.
  • Strong gantry and linear rail ensures durability, stability and quick speed.
  • CNC controller gives screen of 7’’ or 15”, Windows XP, English, Russian, Spanish, Portuguese, French and others. CNC Controller gives easy operation interface, shape library and cutting parameters programs.   Efficiency improvement and cutting quality functions, including Mirror, rotation, scale, repeat, skew functions, etc   USB terminal for program and data input and output.   CNC controller supports mouse and keyboard for easy operation.   Can use FastCAM, Hypertherm and other brands nesting software.
  • ARC voltage THC to drive plasma torch action automatically.
  • Capacitor THC to drive flame torch action automatically.
  • Auto ignition device and flash arrestor on flame torch.
  • Application: for light industries ordinary thickness by both flame and plasma.
Model GSII-Q(D)
Gantry Type LightGantry
Power Voltage 220V/380V 50HZ
Rail Width (mm) 600mm less rail distance
Rail Length (mm) Customer’s requirement
Effective Cutting Width (mm) X-800mm
Effective Cutting Length (mm) Y-1500mm
Plasma Cutting Torch (pcs) 1 set
Flame Cutting Torch (pcs) 1 set
CNC Torch Number 1-2
Torch Moving Distance (mm) 170mm
Max Idle Speed (mm/min) 12000
Flame Cutting Thickness (mm) 150
Cutting Gas Propane, LPG, Acetylne
