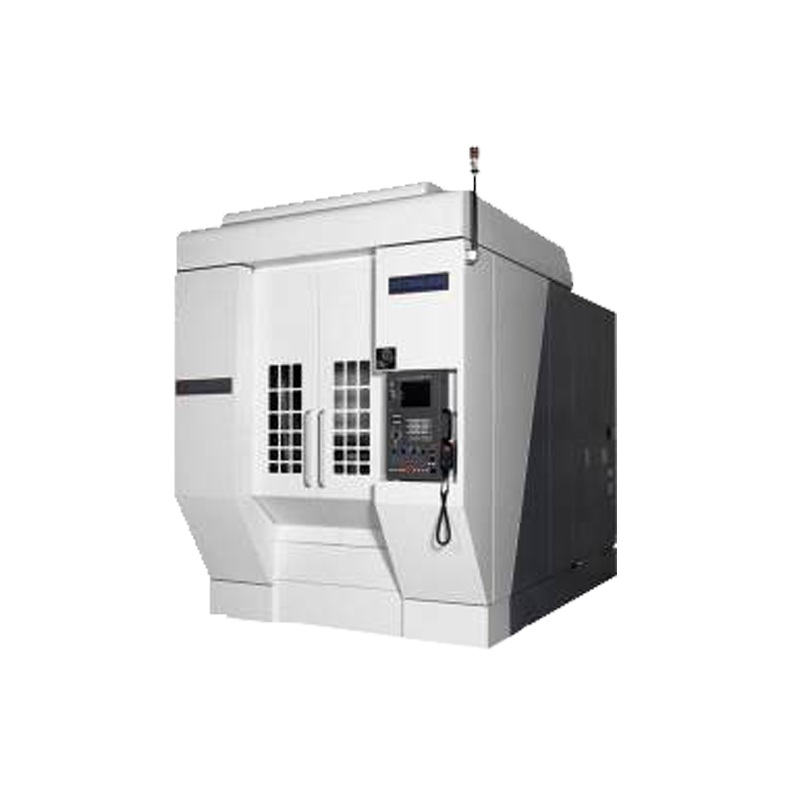

Kitamura Axis Machining Centers Vertical or Horizontal, Kitamura has the Axis machining solution to give you the competitive edge needed to machine all of your complex, multi-sided parts in one set-up. Kitamura’s Trunnion table design offers the users increased accuracy and rigidity, simple set-up and ease of programming for the operator and allows for maximum stiffness and flexibility with the ability to position the work piece closer to the spindle. 4+1 or full simultaneous control, our 5-axis line up has you covered.

Categories: ,

Features

  • Ideal for ultra-high precision simultaneous 5-axis machining
  • Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
  • Sliding overhead door allows for easy workpiece loading/unloading
  • Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
  • Linear scale feedback on all axes, A & B axis rotary scales
  • Highest grade meehanite cast iron construction with solid box ways
Model Mytrunnion-1 Mytrunnion-3 Mytrunnion-5 Supercell-400
Table Size 120mm dia 305x305mm 630mm dia 350mm dia
Travel (X, Y, Z) 325x510x460mm 510x815x500mm 815x745x500mm 510x510x510mm
Travel (A, C) -110’+30 deg/
0360 deg		 -120’+30 deg/
0360 deg		 -120’+30 deg/
0360 deg		 0,,,-100 deg/
0360 deg
Spindle Taper NST No. 30 NST No. 40 NST No. 40 NST No. 40
Spindle Speed 150-15000rpm
(300-30000rpm opt.)		 20-2000Orpm 20-2000Orpm 20-15000rpm
(20-20000rpm opt.)
Tool Storage Capacity 60 pcs 50 pcs 50 pcs 140 pcs (190, 290 opt.)
Tool Change Time (T-T/C-C) 1.1 sec/2.8 sec min 5.8 sec/8.7 sec min 10.1 sec min 1 sec/3.2 sec min
Rapid Feed (X, Y x Z) 1969x1417ipm
(50x36m/min)		 1969x984ipm
(50x25m/min)		 1969x984ipm
(50x25m/min)		 1969ipm (50m/min)
Rapid (A,C) 22.2rpm (8000 deg/min),
500rpm (180000 deg/min)		 80rpm (28800 deg/min),
250rpm (90000 deg/min)		 5.6rpm (2000 deg/min),
16.7rpm (6000 deg/min)		 6.7rpm (2400 deg/min),
33.3rpm (12000 deg/min)
Power Requirement 35KVA 60KVA 45KVA 45KVA
